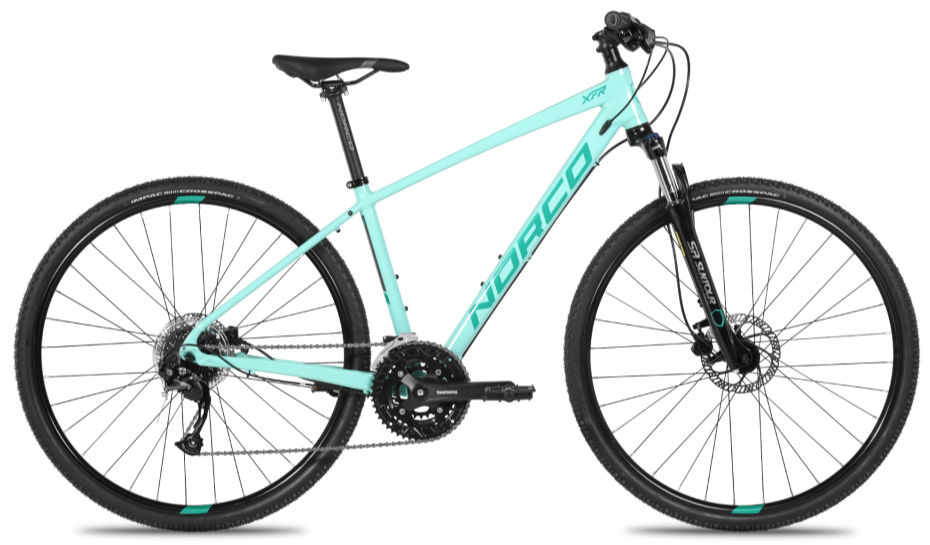

2017 Norco XFR MKII Womens geometry
Full frame geometry for the 2017 Norco XFR MKII Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 607 | 356 | 74.5 | 69.5 | 100 | 525 | 350 | 705 | 68 | 611 | 455 | 1057 |
| XS | 618 | 374 | 74.1 | 70 | 108 | 550 | 390 | 738 | 68 | 626 | 455 | 1073 |
| S | 628 | 391 | 73.7 | 70.5 | 115 | 575 | 430 | 762 | 68 | 642 | 455 | 1088 |
| M | 639 | 408 | 73.3 | 71 | 130 | 600 | 470 | 797 | 63 | 658 | 455 | 1106 |
All measurements in millimetres unless marked (°) for angles.
