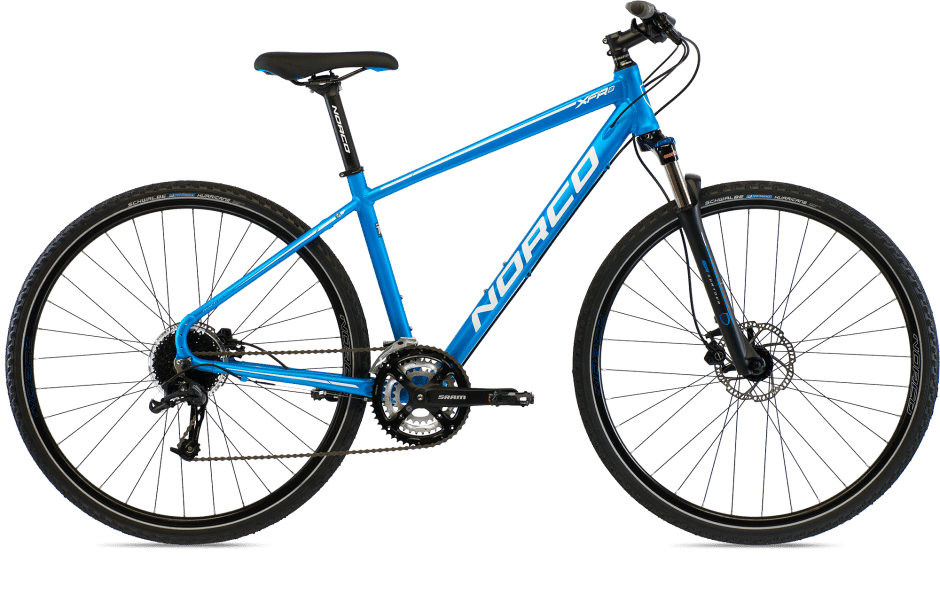

2015 Norco XFR MKI geometry
Full frame geometry for the 2015 Norco XFR MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14.5 | 616 | 373 | 74 | 70 | 110 | 550 | 365 | 733 | 60 | 619 | 455 | 1067 |
| 16 | 627 | 384 | 73.5 | 70.5 | 120 | 570 | 412 | 780 | 60 | 628 | 455 | 1076 |
| 18 | 639 | 395 | 73 | 71 | 130 | 590 | 459 | 801 | 60 | 637 | 455 | 1085 |
| 20 | 648 | 406 | 72.5 | 71 | 140 | 610 | 510 | 825 | 60 | 651 | 455 | 1099 |
| 22 | 660 | 422 | 72.5 | 71.5 | 150 | 630 | 562 | 854 | 60 | 665 | 455 | 1114 |
All measurements in millimetres unless marked (°) for angles.
