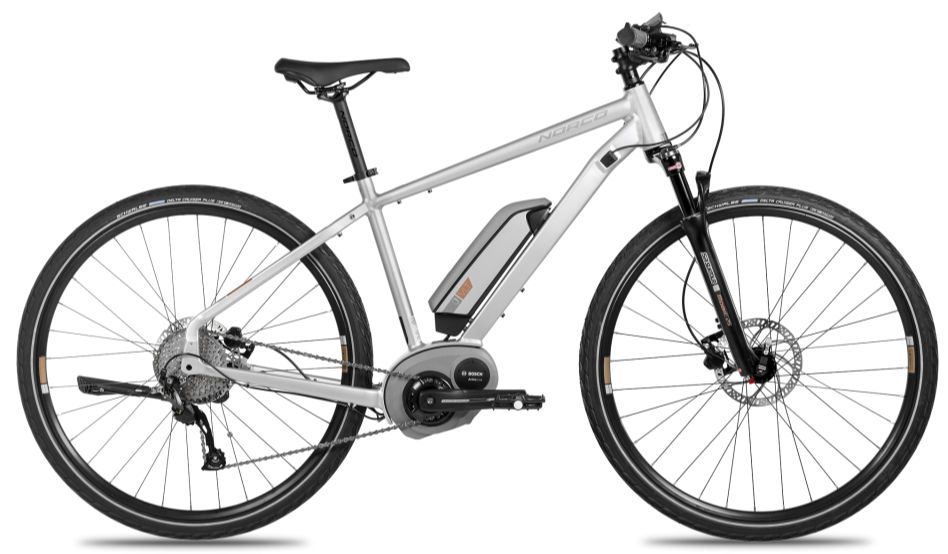

2017 Norco VLT S geometry
Full frame geometry for the 2017 Norco VLT S, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 600 | 395 | 73.7 | 70 | 105 | 570 | 430 | 766 | 69 | 638 | 480 | 1110 |
| XS | 600 | 374 | 74.1 | 70 | 105 | 545 | 390 | 759 | 69 | 618 | 480 | 1089 |
| M | 619 | 409 | 73.3 | 70 | 125 | 595 | 470 | 786 | 69 | 660 | 480 | 1131 |
| L | 642 | 423 | 72.9 | 71 | 145 | 620 | 510 | 812 | 69 | 670 | 480 | 1141 |
| XL | 661 | 437 | 72.5 | 71 | 165 | 645 | 550 | 838 | 69 | 690 | 480 | 1162 |
All measurements in millimetres unless marked (°) for angles.
