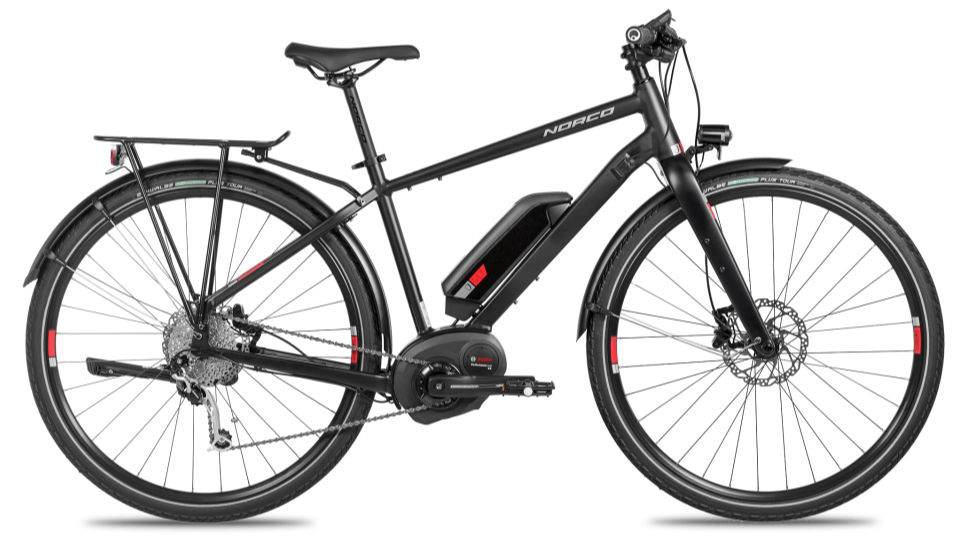

2017 Norco VLT R geometry
Full frame geometry for the 2017 Norco VLT R, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 562 | 380 | 74.1 | 70 | 115 | 540 | 390 | 733 | 74 | 610 | 480 | 1080 |
| S | 581 | 395 | 73.7 | 70 | 135 | 565 | 430 | 752 | 74 | 632 | 480 | 1102 |
| M | 600 | 410 | 73.3 | 70 | 155 | 590 | 470 | 772 | 74 | 654 | 480 | 1124 |
| L | 623 | 423 | 72.9 | 71 | 175 | 615 | 510 | 799 | 74 | 664 | 480 | 1134 |
| XL | 642 | 438 | 72.5 | 71 | 195 | 640 | 550 | 825 | 74 | 685 | 480 | 1155 |
All measurements in millimetres unless marked (°) for angles.
