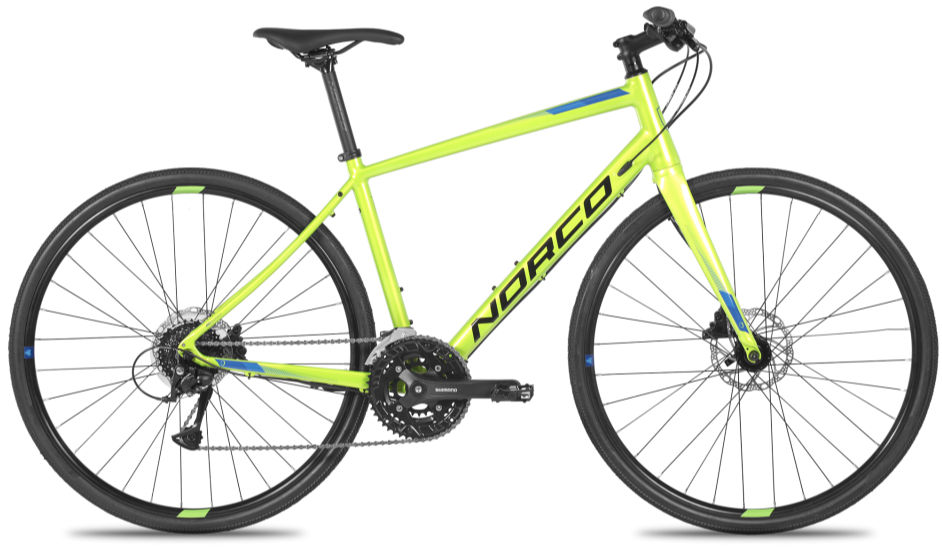

2017 Norco VFR MKII geometry
Full frame geometry for the 2017 Norco VFR MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 544 | 388 | 74.5 | 70.5 | 140 | 540 | 365 | 711 | 65 | 614 | 435 | 1040 |
| S | 565 | 397 | 74 | 71 | 160 | 560 | 412 | 738 | 65 | 625 | 435 | 1052 |
| M | 586 | 405 | 73.5 | 71.5 | 180 | 580 | 459 | 772 | 65 | 635 | 435 | 1062 |
| L | 622 | 410 | 73 | 71.5 | 200 | 600 | 510 | 810 | 65 | 647 | 435 | 1074 |
| XL | 643 | 417 | 72.5 | 72 | 220 | 620 | 562 | 844 | 65 | 656 | 435 | 1082 |
| XXL | 662 | 426 | 72.5 | 72 | 240 | 635 | 610 | 876 | 65 | 671 | 435 | 1098 |
All measurements in millimetres unless marked (°) for angles.
