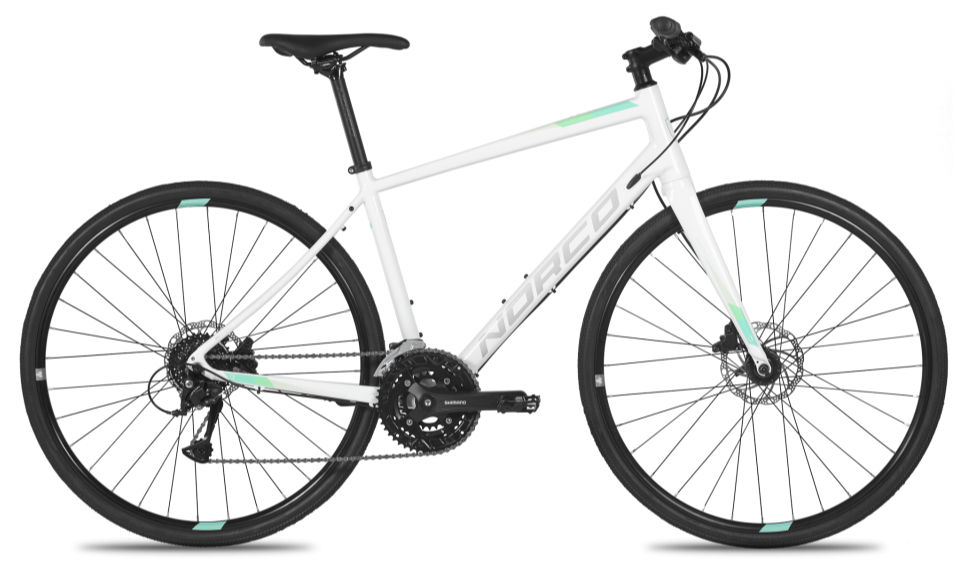

2017 Norco VFR MKII Womens geometry
Full frame geometry for the 2017 Norco VFR MKII Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 523 | 379 | 75 | 70 | 120 | 520 | 330 | 690 | 65 | 602 | 435 | 1028 |
| XS | 544 | 388 | 74.5 | 70.5 | 140 | 540 | 365 | 711 | 65 | 614 | 435 | 1040 |
| S | 565 | 397 | 74 | 71 | 160 | 560 | 412 | 738 | 65 | 625 | 435 | 1052 |
| M | 586 | 405 | 73.5 | 71.5 | 180 | 580 | 459 | 772 | 65 | 635 | 435 | 1062 |
All measurements in millimetres unless marked (°) for angles.
