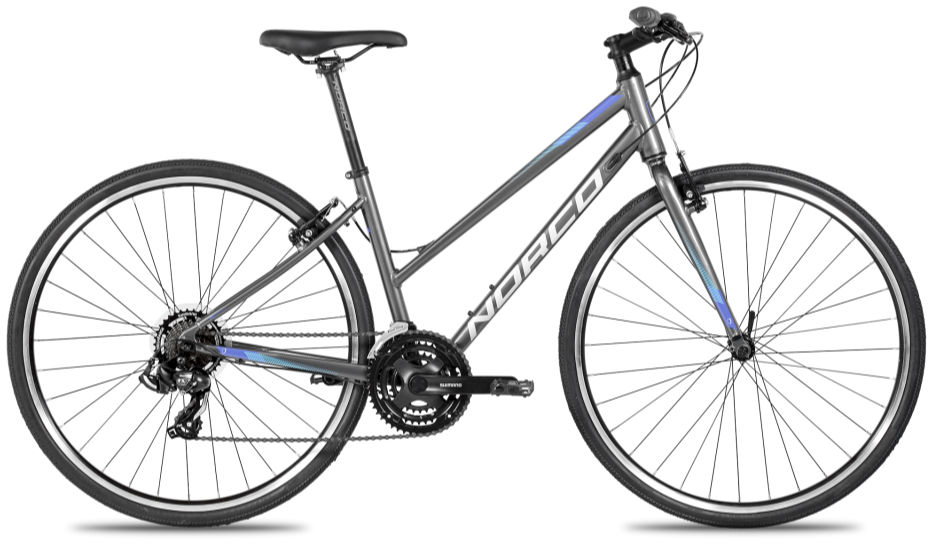

2017 Norco VFR MKII Step-Thru geometry
Full frame geometry for the 2017 Norco VFR MKII Step-Thru, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 527 | 379 | 75 | 70 | 110 | 520 | 330 | 621 | 65 | 598 | 435 | 1025 |
| XS | 548 | 388 | 74.5 | 70.5 | 130 | 540 | 365 | 636 | 65 | 610 | 435 | 1037 |
| S | 568 | 397 | 74 | 71 | 150 | 560 | 412 | 636 | 65 | 621 | 435 | 1048 |
| M | 589 | 405 | 73.5 | 71.5 | 170 | 580 | 459 | 636 | 65 | 631 | 435 | 1058 |
All measurements in millimetres unless marked (°) for angles.
