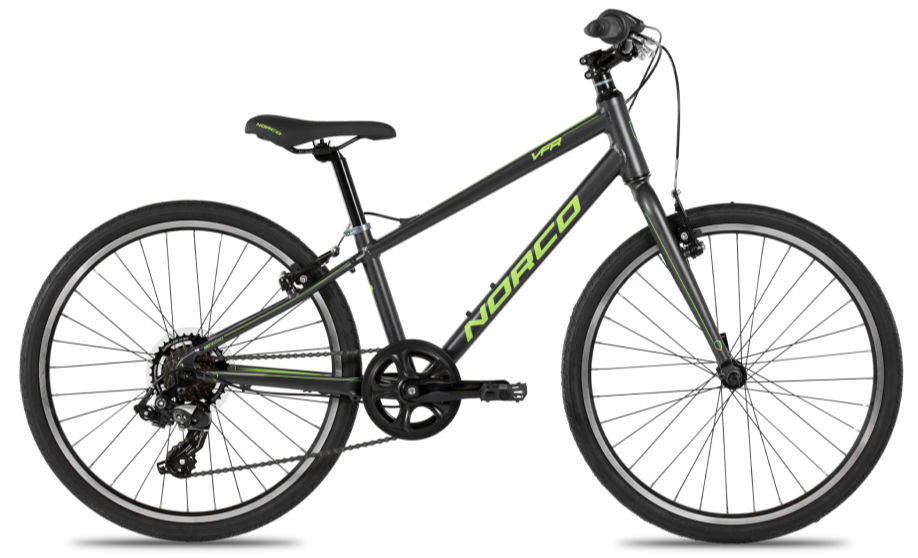

2017 Norco VFR 24 geometry
Full frame geometry for the 2017 Norco VFR 24, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 503 | 336 | 72 | 70 | 140 | 500 | 290 | 658 | 30 | 552 | 380 | 930 |
All measurements in millimetres unless marked (°) for angles.
