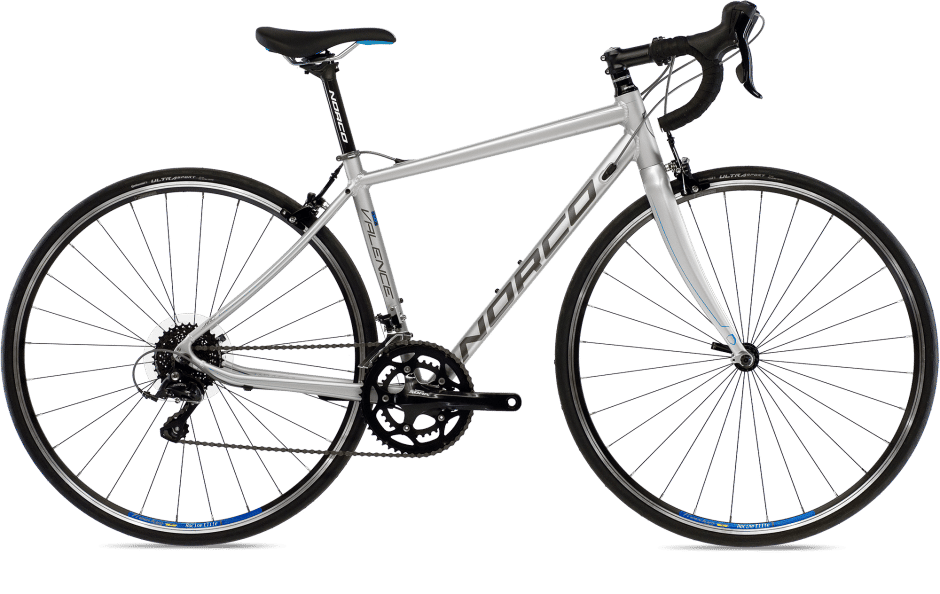

2015 Norco Valence Forma Al geometry
Full frame geometry for the 2015 Norco Valence Forma Al, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45.5 | 517 | 359 | 75 | 70.8 | 110 | 498 | 400 | 703 | 75 | 572 | 412 | 973 |
| 48 | 528 | 364 | 74.5 | 71.3 | 120 | 510 | 425 | 717 | 75 | 576 | 412 | 976 |
| 50.5 | 542 | 370 | 74 | 71.8 | 135 | 525 | 450 | 738 | 73 | 583 | 415 | 987 |
| 53 | 561 | 376 | 73.5 | 72.3 | 153 | 543 | 480 | 756 | 73 | 588 | 415 | 992 |
| 55.5 | 584 | 385 | 73.3 | 72.5 | 175 | 560 | 510 | 783 | 73 | 600 | 415 | 1005 |
All measurements in millimetres unless marked (°) for angles.
