2017 Norco · RW

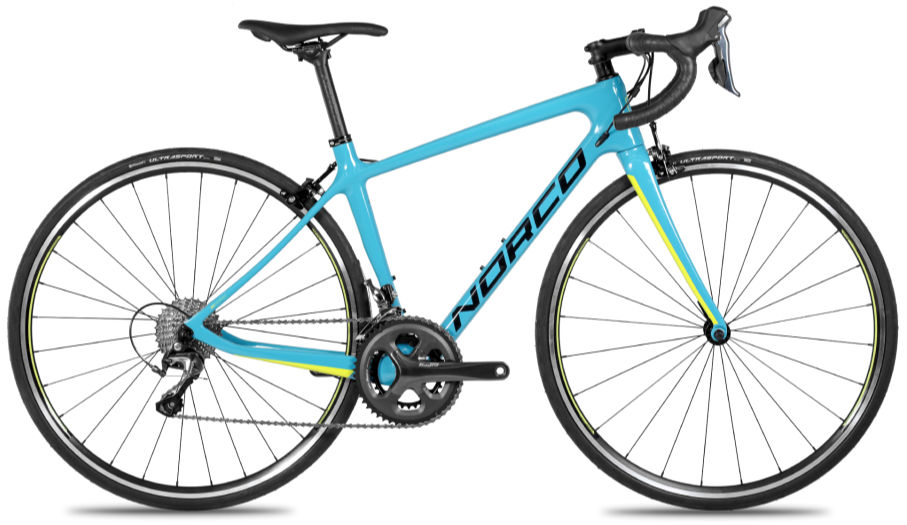

2017 Norco Valence C Womens geometry
Full frame geometry for the 2017 Norco Valence C Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45.5 | 517 | 359 | 75 | 70.8 | 110 | 498 | 400 | 698 | 75 | 572 | 412 | 972 |
| 48 | 528 | 363 | 74.5 | 71.2 | 120 | 510 | 425 | 712 | 75 | 576 | 412 | 976 |
| 50.5 | 542 | 370 | 74 | 71.8 | 135 | 525 | 450 | 729 | 72 | 583 | 415 | 987 |
| 53 | 561 | 376 | 73.5 | 72.2 | 152 | 542 | 480 | 752 | 72 | 588 | 415 | 992 |
| 55.5 | 584 | 384 | 73.2 | 72.5 | 175 | 560 | 510 | 777 | 72 | 600 | 415 | 1004 |
All measurements in millimetres unless marked (°) for angles.
