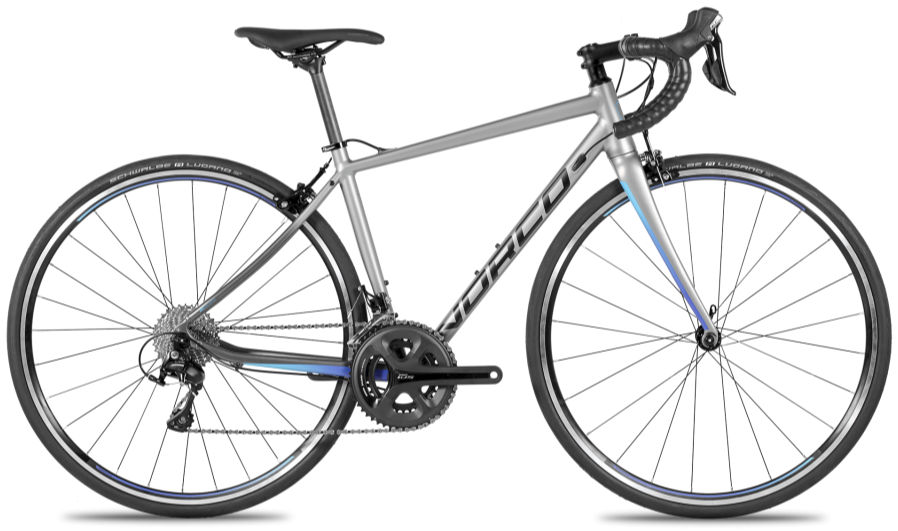

2017 Norco Valence Alu Womens geometry
Full frame geometry for the 2017 Norco Valence Alu Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45.5 | 517 | 359 | 75 | 70.8 | 110 | 498 | 400 | 705 | 75 | 571 | 412 | 971 |
| 48 | 529 | 363 | 74.5 | 71.2 | 120 | 510 | 425 | 720 | 75 | 575 | 412 | 975 |
| 50.5 | 542 | 370 | 74 | 71.8 | 135 | 525 | 450 | 738 | 72 | 582 | 415 | 986 |
| 53 | 561 | 376 | 73.5 | 72.2 | 152 | 542 | 480 | 758 | 72 | 590 | 415 | 994 |
| 55.5 | 583 | 385 | 73.2 | 72.5 | 175 | 560 | 510 | 781 | 72 | 602 | 415 | 1007 |
All measurements in millimetres unless marked (°) for angles.
