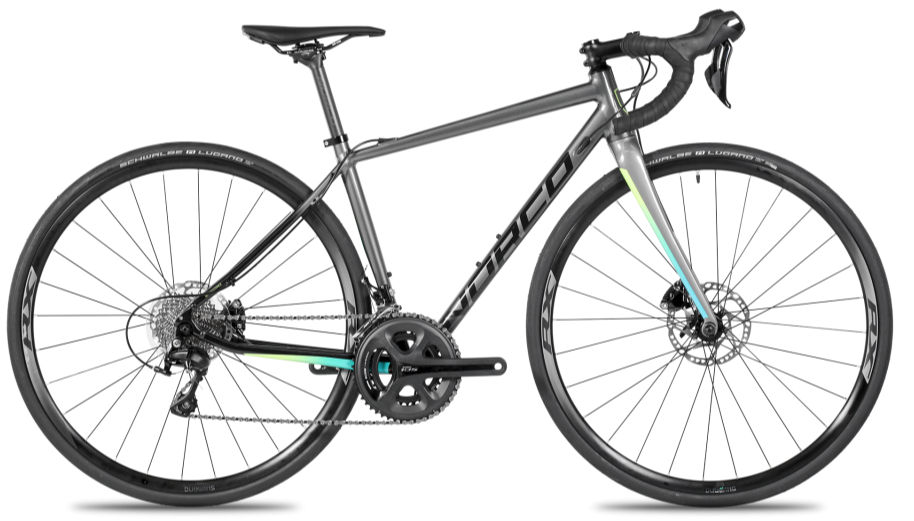

2017 Norco Valence Alu Disc Womens geometry
Full frame geometry for the 2017 Norco Valence Alu Disc Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45.5 | 517 | 359 | 75 | 70.5 | 100 | 498 | 400 | 703 | 75 | 572 | 415 | 976 |
| 48 | 529 | 366 | 74.8 | 70.8 | 115 | 510 | 425 | 717 | 72 | 582 | 415 | 986 |
| 50.5 | 545 | 371 | 74.2 | 71.2 | 130 | 525 | 450 | 735 | 72 | 588 | 415 | 992 |
| 53 | 562 | 376 | 73.5 | 72 | 148 | 542 | 480 | 756 | 70 | 592 | 415 | 996 |
| 55.5 | 585 | 384 | 73.2 | 72.2 | 170 | 560 | 510 | 783 | 70 | 604 | 415 | 1009 |
All measurements in millimetres unless marked (°) for angles.
