2017 Norco · RY

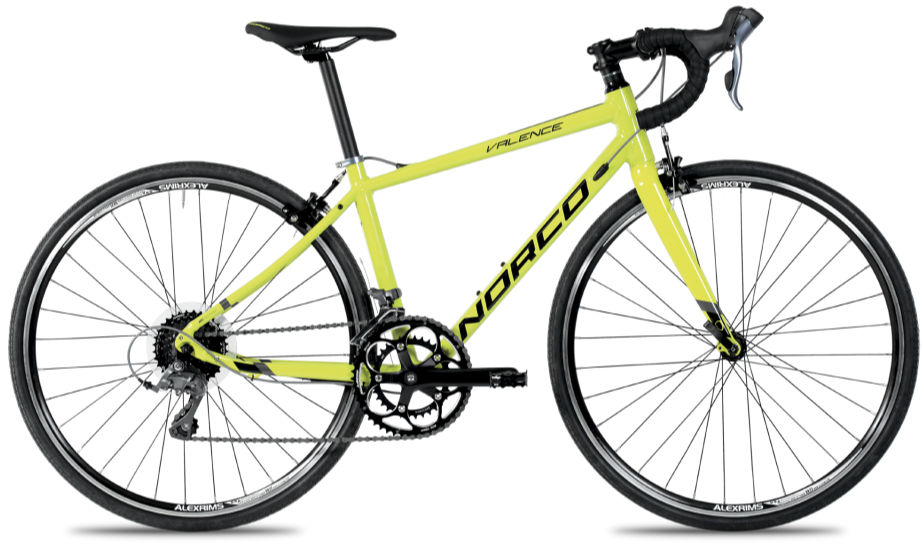

2017 Norco Valence 26 geometry
Full frame geometry for the 2017 Norco Valence 26, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 26 | 483 | 348 | 74.5 | 71 | 130 | 483 | 380 | 674 | 49 | 545 | 380 | 920 |
All measurements in millimetres unless marked (°) for angles.
