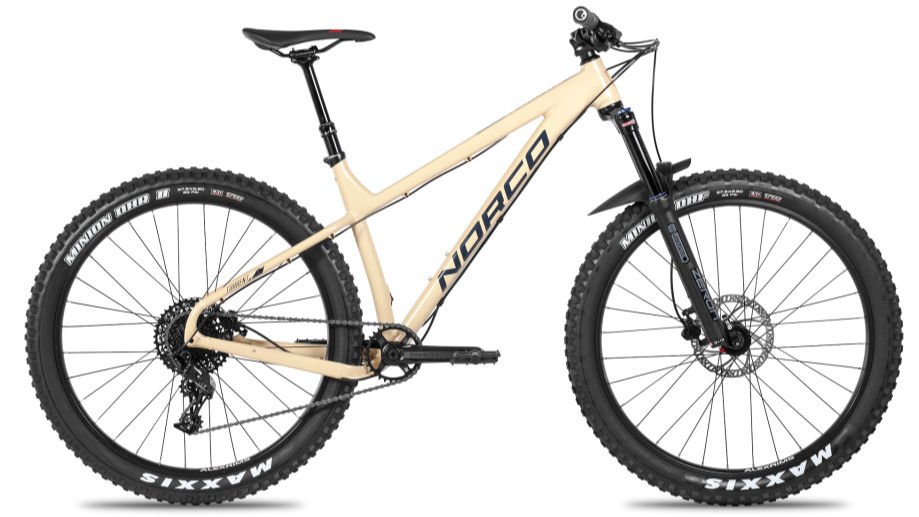

2017 Norco Torrent geometry
Full frame geometry for the 2017 Norco Torrent, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 603 | 399 | 72.9 | 66.5 | 90 | 585 | 405 | 768 | 35 | 703 | 420 | 1121 |
| M | 613 | 422 | 72.5 | 66.5 | 100 | 615 | 435 | 758 | 35 | 729 | 423 | 1150 |
| L | 622 | 444 | 72.1 | 66.5 | 110 | 645 | 470 | 777 | 35 | 756 | 425 | 1178 |
| XL | 631 | 466 | 71.7 | 66.5 | 120 | 675 | 510 | 795 | 35 | 782 | 428 | 1207 |
All measurements in millimetres unless marked (°) for angles.
