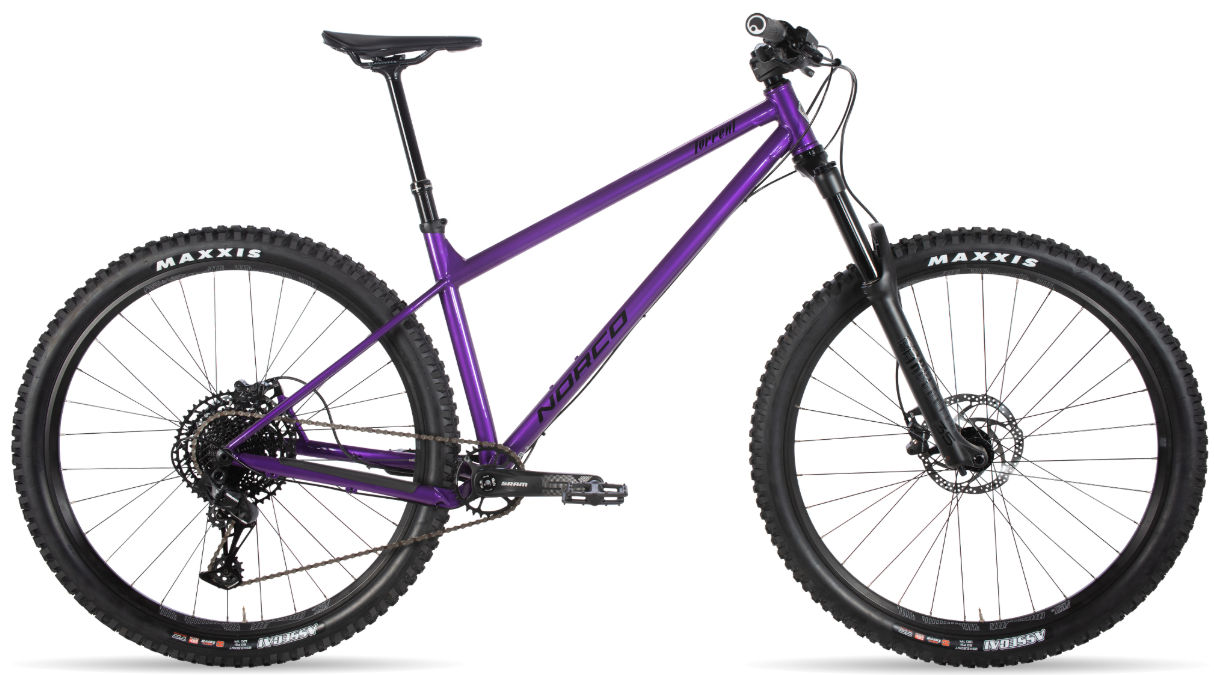

2019 Norco Torrent ST geometry
Full frame geometry for the 2019 Norco Torrent ST, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 637 | 450 | 76 | 64 | 105 | 609 | 395 | 677 | 45 | 787 | 420 | 1203 | 42 | 138 |
| S | 637 | 420 | 76 | 64 | 105 | 579 | 370 | 662 | 45 | 757 | 420 | 1173 | 42 | 138 |
| L | 646 | 480 | 76 | 64 | 115 | 641 | 435 | 698 | 45 | 822 | 425 | 1243 | 42 | 138 |
| XL | 655 | 510 | 76 | 64 | 125 | 673 | 485 | 744 | 45 | 856 | 425 | 1277 | 42 | 138 |
All measurements in millimetres unless marked (°) for angles.
