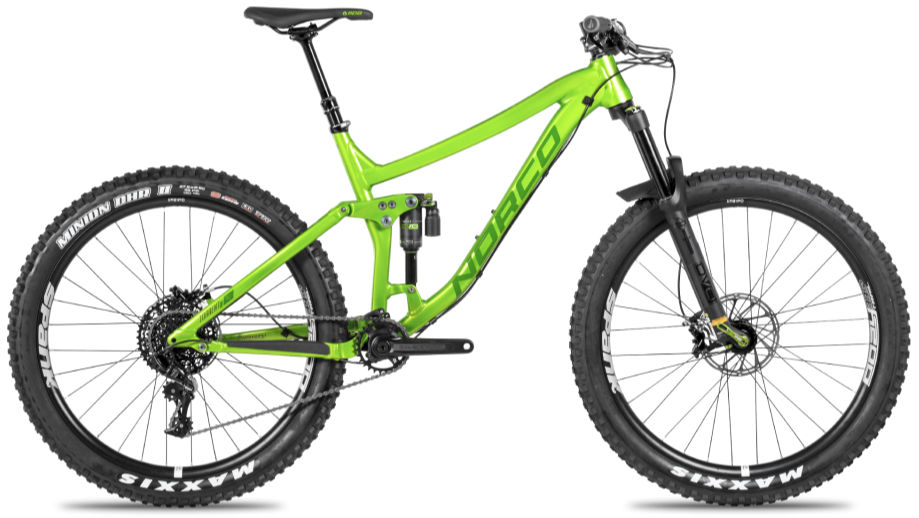

2017 Norco Torrent FS geometry
Full frame geometry for the 2017 Norco Torrent FS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 597 | 432 | 74.4 | 67 | 94 | 598 | 435 | 785 | 20 | 732 | 430 | 1162 |
| S | 597 | 406 | 74.9 | 67 | 94 | 567 | 405 | 801 | 20 | 706 | 425 | 1131 |
| L | 606 | 456 | 74 | 67 | 104 | 630 | 470 | 783 | 20 | 761 | 435 | 1195 |
| XL | 615 | 480 | 73.6 | 67 | 114 | 661 | 510 | 793 | 20 | 788 | 440 | 1227 |
All measurements in millimetres unless marked (°) for angles.
