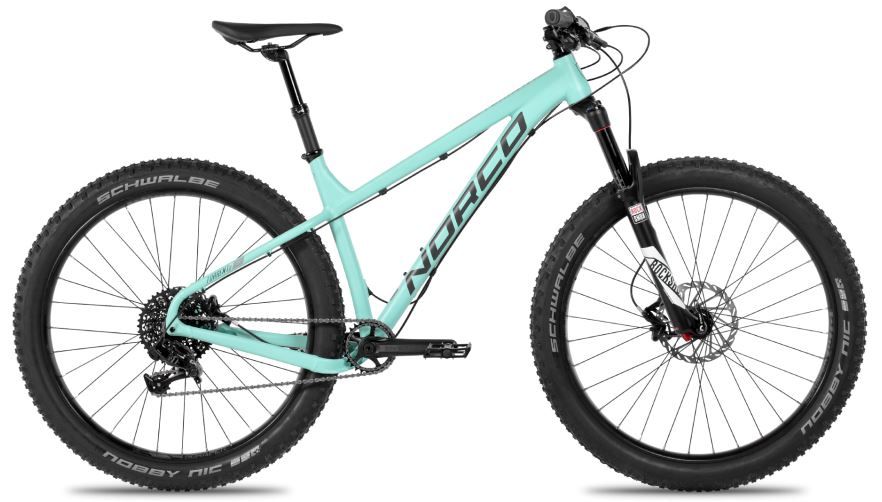

2016 Norco Torrent 7 geometry
Full frame geometry for the 2016 Norco Torrent 7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 606 | 398 | 73.5 | 67 | 90 | 577 | 767 | 45 | 692 | 420 | 1108 |
| M | 615 | 420 | 73.1 | 67 | 100 | 607 | 760 | 45 | 719 | 423 | 1137 |
| L | 624 | 442 | 72.7 | 67 | 110 | 637 | 778 | 45 | 745 | 425 | 1166 |
| XL | 634 | 465 | 72.3 | 67 | 120 | 667 | 798 | 45 | 771 | 428 | 1195 |
All measurements in millimetres unless marked (°) for angles.
