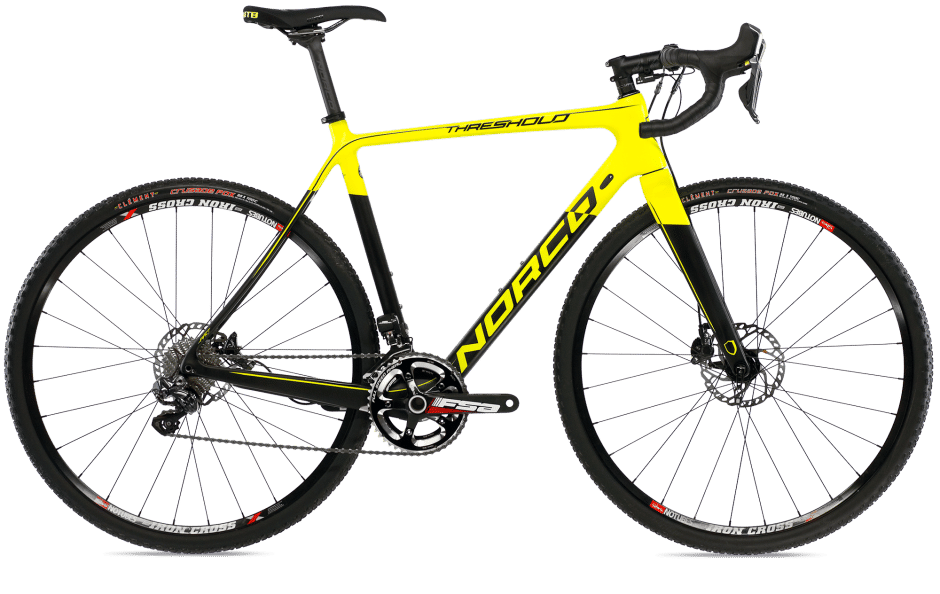

2015 Norco Threshold SL geometry
Full frame geometry for the 2015 Norco Threshold SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50.5 | 534 | 372 | 74.5 | 70.5 | 115 | 520 | 505 | 762 | 68 | 589 | 425 | 1005 |
| 53 | 552 | 379 | 74 | 71.5 | 130 | 538 | 530 | 785 | 68 | 593 | 425 | 1008 |
| 55.5 | 569 | 389 | 73.8 | 72.3 | 145 | 555 | 555 | 808 | 68 | 601 | 425 | 1017 |
| 58 | 589 | 398 | 73.5 | 72.5 | 165 | 573 | 580 | 830 | 68 | 613 | 425 | 1029 |
| 60.5 | 609 | 407 | 73.3 | 72.8 | 185 | 590 | 605 | 848 | 68 | 626 | 425 | 1042 |
All measurements in millimetres unless marked (°) for angles.
