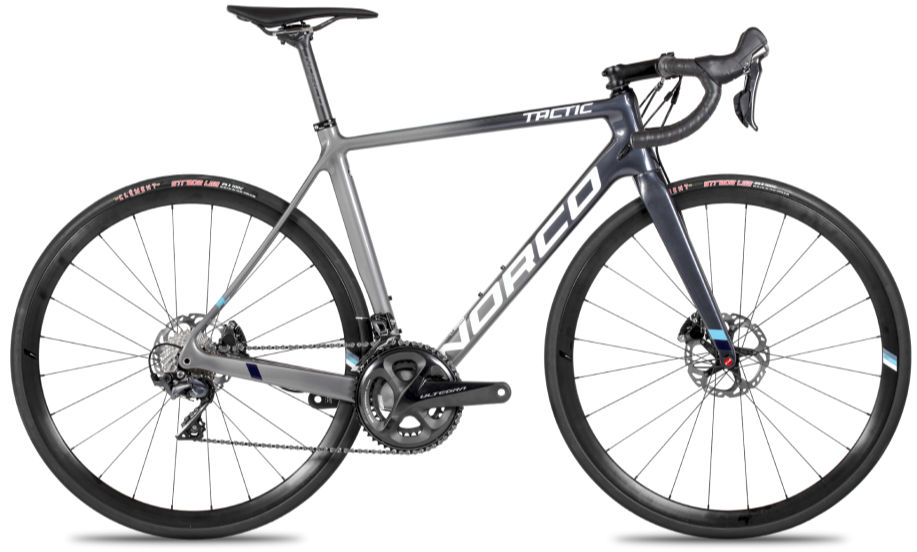

2017 Norco Tactic SL Disc geometry
Full frame geometry for the 2017 Norco Tactic SL Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 514 | 373 | 74.5 | 71.5 | 110 | 515 | 459 | 735 | 70 | 573 | 405 | 967 |
| 50.5 | 527 | 379 | 74 | 72.5 | 120 | 530 | 484 | 752 | 70 | 574 | 405 | 969 |
| 53 | 542 | 387 | 73.8 | 72.8 | 135 | 545 | 509 | 770 | 70 | 585 | 405 | 980 |
| 55.5 | 557 | 395 | 73.5 | 73 | 150 | 560 | 534 | 789 | 70 | 595 | 408 | 992 |
| 58 | 577 | 404 | 73.3 | 73.3 | 170 | 578 | 559 | 810 | 70 | 608 | 408 | 1005 |
| 60.5 | 597 | 413 | 73 | 73.5 | 190 | 595 | 584 | 831 | 70 | 620 | 408 | 1017 |
All measurements in millimetres unless marked (°) for angles.
