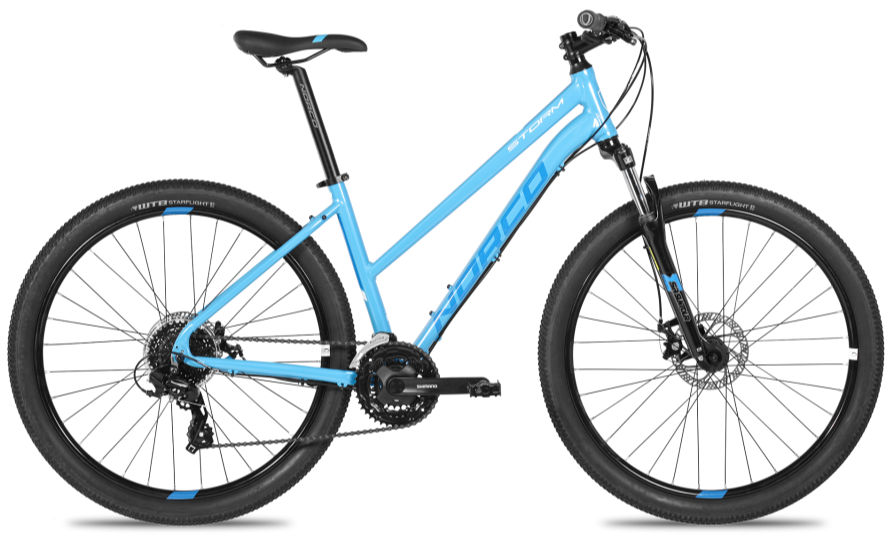

2018 Norco Storm Step-Thru geometry
Full frame geometry for the 2018 Norco Storm Step-Thru, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 605 | 336 | 73.5 | 68.5 | 125 | 515 | 340 | 714 | 55 | 600 | 435 | 1029 |
| XS | 617 | 353 | 73.1 | 69 | 135 | 540 | 395 | 699 | 55 | 616 | 435 | 1045 |
| S | 626 | 375 | 72.7 | 69 | 145 | 570 | 440 | 691 | 55 | 642 | 435 | 1071 |
All measurements in millimetres unless marked (°) for angles.
