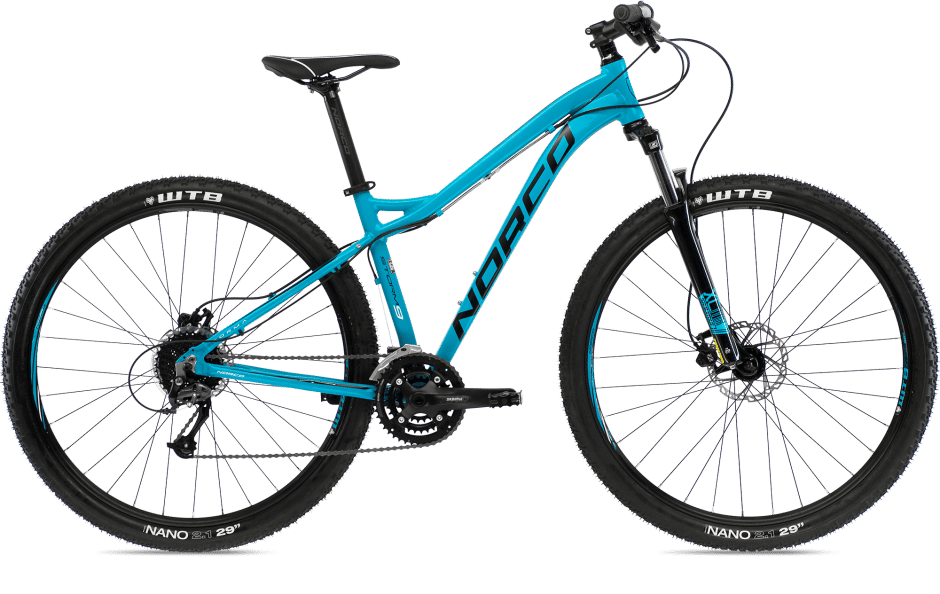

2015 Norco Storm Forma 9 geometry
Full frame geometry for the 2015 Norco Storm Forma 9, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 628 | 364 | 73.5 | 70 | 115 | 550 | 381 | 786 | 68 | 621 | 450 | 1062 |
| 17 | 635 | 376 | 73 | 70.5 | 120 | 570 | 432 | 780 | 68 | 629 | 450 | 1070 |
| 18.5 | 635 | 396 | 73 | 70.5 | 130 | 590 | 470 | 783 | 63 | 650 | 450 | 1093 |
All measurements in millimetres unless marked (°) for angles.
