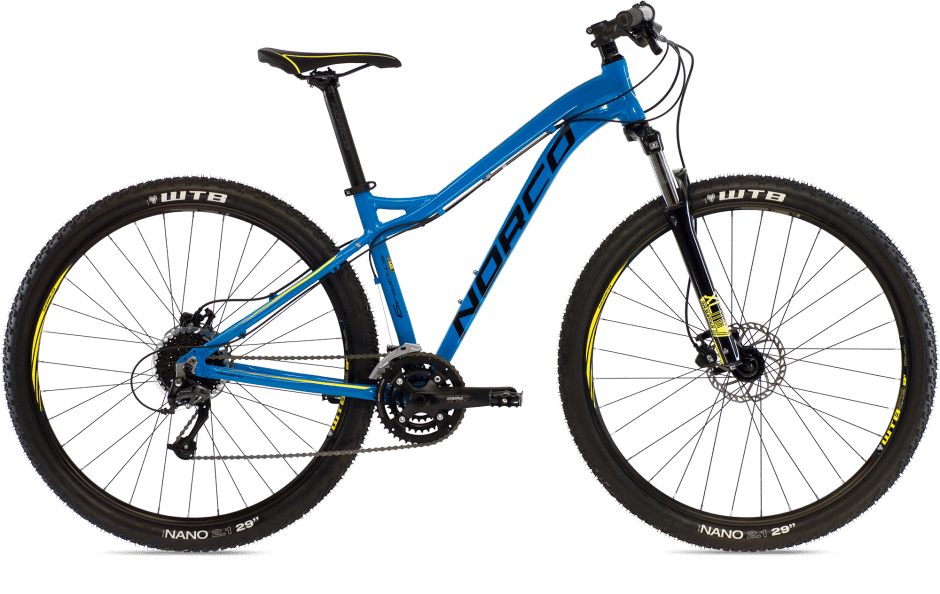

2015 Norco Storm 9 geometry
Full frame geometry for the 2015 Norco Storm 9, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13 | 605 | 359 | 74 | 69.5 | 105 | 532 | 330 | 744 | 55 | 612 | 435 | 1040 |
| 15 | 617 | 372 | 73.8 | 70 | 115 | 552 | 381 | 737 | 55 | 624 | 435 | 1053 |
| 17 | 626 | 387 | 73.5 | 70 | 125 | 572 | 432 | 745 | 55 | 642 | 435 | 1070 |
| 18.5 | 635 | 402 | 73.3 | 70 | 140 | 593 | 470 | 753 | 50 | 662 | 435 | 1092 |
| 20 | 645 | 417 | 73 | 70 | 150 | 614 | 508 | 759 | 50 | 680 | 435 | 1110 |
| 21.5 | 654 | 432 | 72.8 | 70 | 160 | 635 | 546 | 765 | 50 | 698 | 435 | 1129 |
All measurements in millimetres unless marked (°) for angles.
