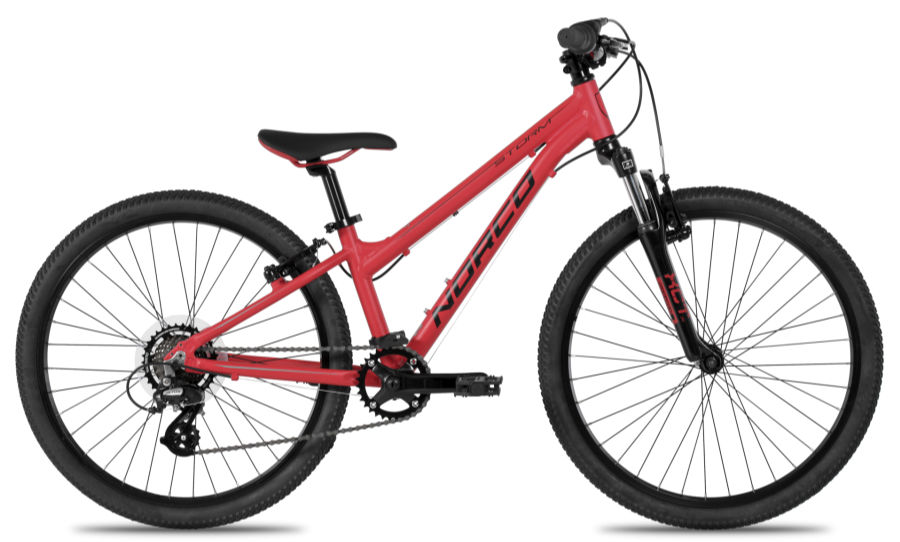

2017 Norco Storm 24 geometry
Full frame geometry for the 2017 Norco Storm 24, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 522 | 330 | 72 | 69 | 100 | 500 | 290 | 749 | 40 | 559 | 380 | 956 |
All measurements in millimetres unless marked (°) for angles.
