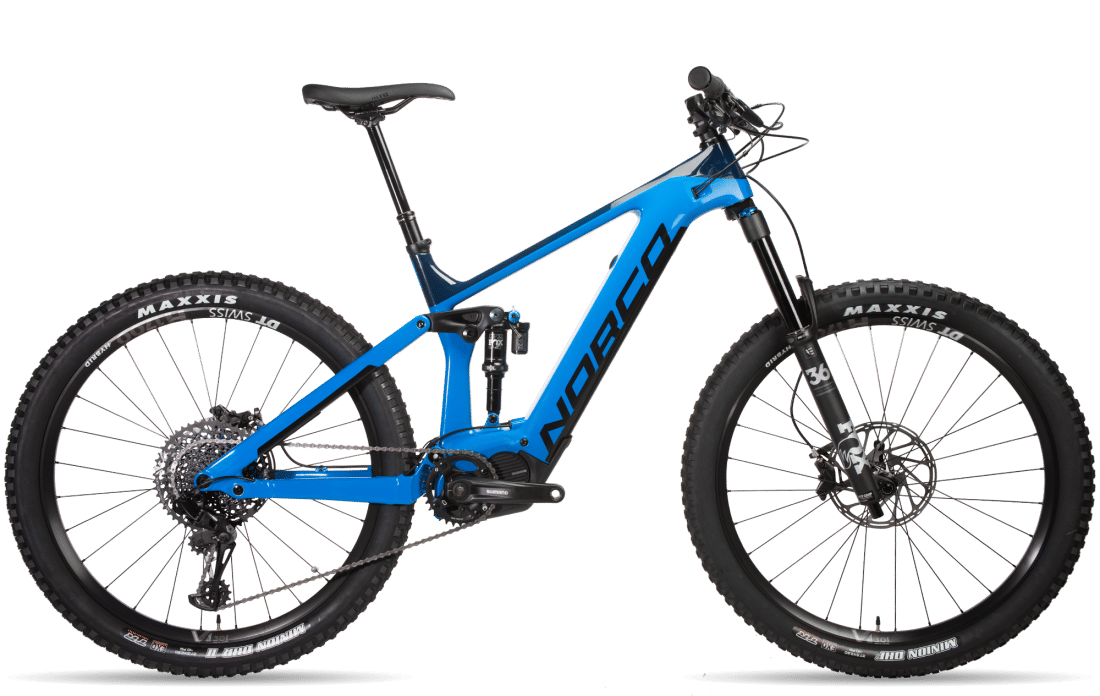

2019 Norco Sight VLT geometry
Full frame geometry for the 2019 Norco Sight VLT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 598 | 410 | 75 | 66 | 100 | 570 | 405 | 808 | 15 | 710 | 440 | 1150 | 44 |
| M | 607 | 440 | 75 | 66 | 110 | 603 | 435 | 799 | 15 | 744 | 440 | 1184 | 44 |
| L | 617 | 470 | 75 | 66 | 120 | 635 | 470 | 801 | 15 | 778 | 440 | 1218 | 44 |
All measurements in millimetres unless marked (°) for angles.
