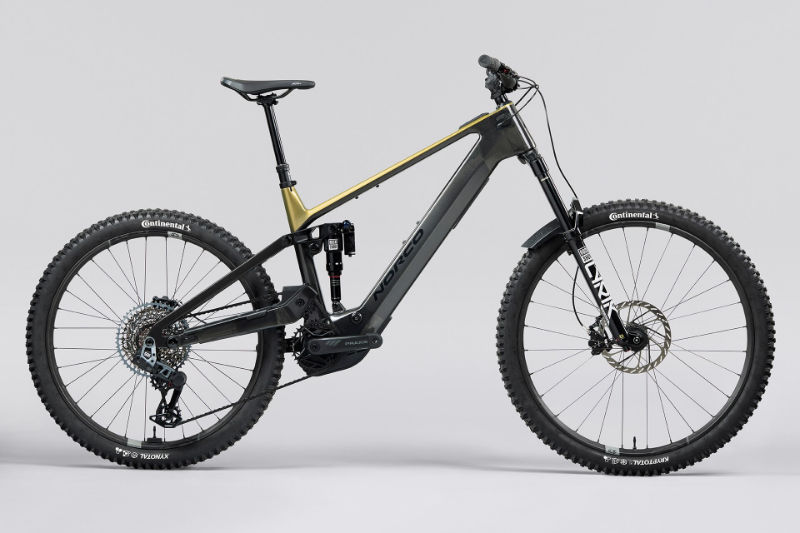

2025 Norco Sight VLT CX geometry
Full frame geometry for the 2025 Norco Sight VLT CX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S2 | 627 | 447.5 | 77.3 | 64 | 115 | 589 | 395 | 701 | 25 | 432 | 1222 | 44 | 133 |
| S3 | 636 | 472.5 | 77.5 | 64 | 125 | 613 | 415 | 711 | 25 | 436 | 1255 | 44 | 133 |
| S4 | 645 | 497.5 | 77.8 | 64 | 135 | 637 | 445 | 714 | 25 | 440 | 1289 | 44 | 133 |
| S5 | 654 | 522.5 | 78 | 64 | 145 | 661 | 475 | 729 | 25 | 444 | 1322 | 44 | 133 |
All measurements in millimetres unless marked (°) for angles.
