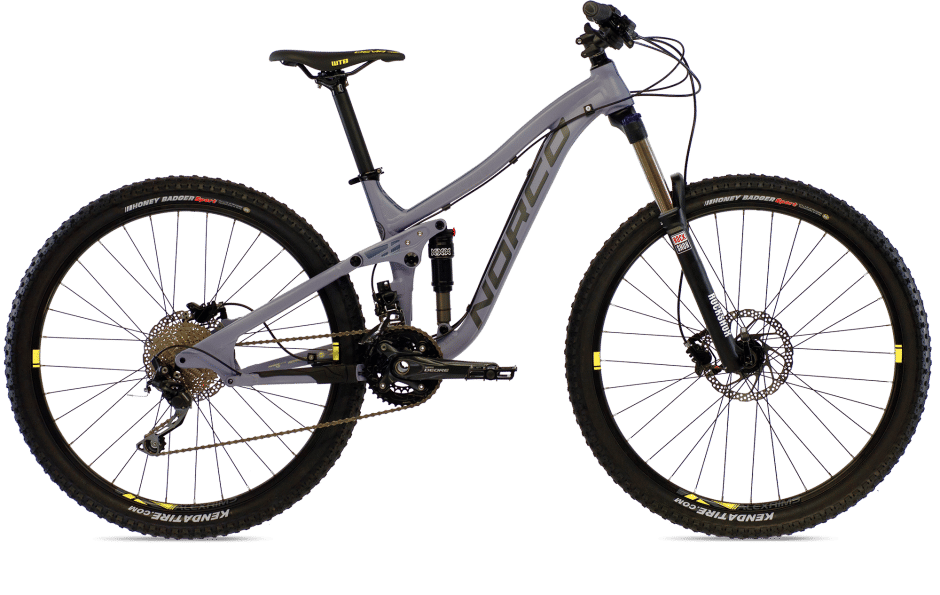

2015 Norco Sight Forma A7 geometry
Full frame geometry for the 2015 Norco Sight Forma A7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 574 | 381 | 75 | 67.5 | 90 | 535 | 380 | 745 | 15 | 658 | 419 | 1077 |
| S | 583 | 402 | 74.6 | 67.5 | 100 | 562 | 405 | 739 | 15 | 682 | 423 | 1105 |
| M | 592 | 421 | 74.2 | 67.5 | 110 | 588 | 435 | 739 | 15 | 705 | 427 | 1132 |
All measurements in millimetres unless marked (°) for angles.
