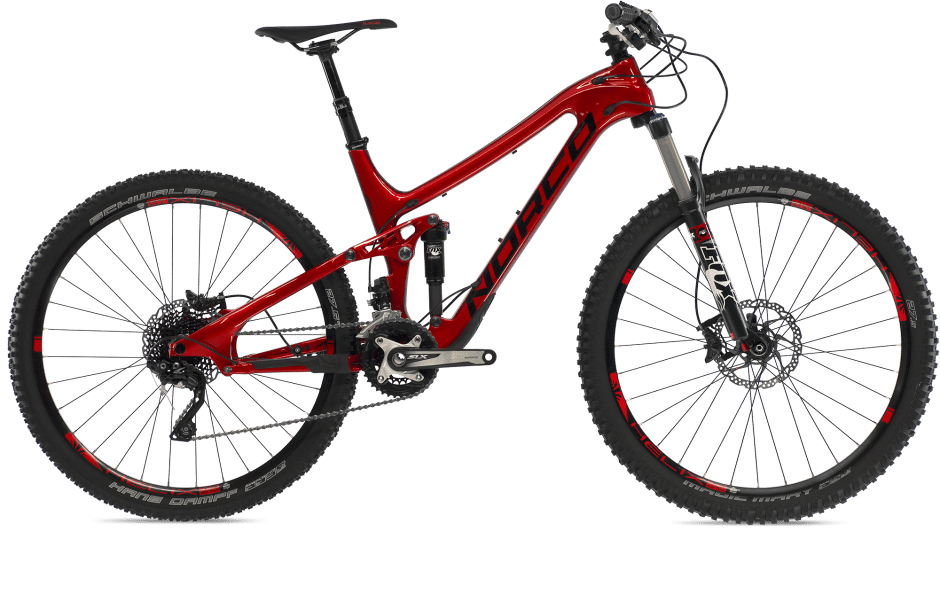

2015 Norco Sight C7 geometry
Full frame geometry for the 2015 Norco Sight C7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 583 | 402 | 74.6 | 67.5 | 100 | 562 | 405 | 752 | 15 | 687 | 423 | 1105 |
| M | 592 | 421 | 74.2 | 67.5 | 110 | 588 | 435 | 751 | 15 | 707 | 427 | 1132 |
| L | 601 | 442 | 73.9 | 67.5 | 120 | 615 | 470 | 765 | 15 | 731 | 431 | 1161 |
| XL | 611 | 461 | 73.5 | 67.5 | 130 | 642 | 510 | 777 | 15 | 753 | 435 | 1188 |
All measurements in millimetres unless marked (°) for angles.
