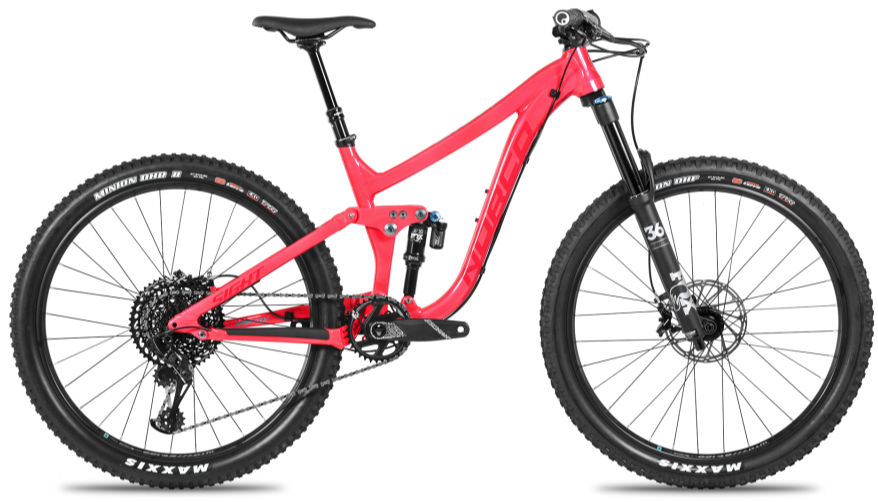

2017 Norco Sight A7 MKII Womens geometry
Full frame geometry for the 2017 Norco Sight A7 MKII Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 580 | 381 | 75.4 | 66.5 | 90 | 532 | 380 | 772 | 15 | 675 | 420 | 1094 |
| S | 589 | 404 | 75 | 66.5 | 100 | 562 | 405 | 767 | 15 | 701 | 425 | 1126 |
| M | 598 | 426 | 74.5 | 66.5 | 110 | 592 | 435 | 772 | 15 | 728 | 430 | 1157 |
All measurements in millimetres unless marked (°) for angles.
