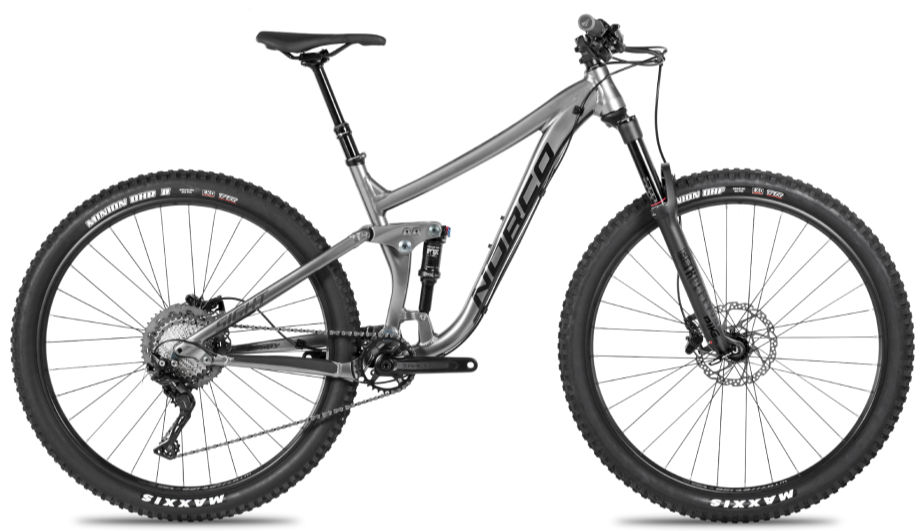

2017 Norco Sight A7 MKII (29) geometry
Full frame geometry for the 2017 Norco Sight A7 MKII (29), size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 613 | 457 | 74.1 | 67 | 94 | 632 | 470 | 788 | 36 | 758 | 435 | 1191 |
| M | 613 | 431 | 74.5 | 67 | 94 | 601 | 435 | 790 | 36 | 732 | 430 | 1160 |
| XL | 622 | 480 | 73.7 | 67 | 104 | 662 | 510 | 793 | 36 | 784 | 440 | 1222 |
All measurements in millimetres unless marked (°) for angles.
