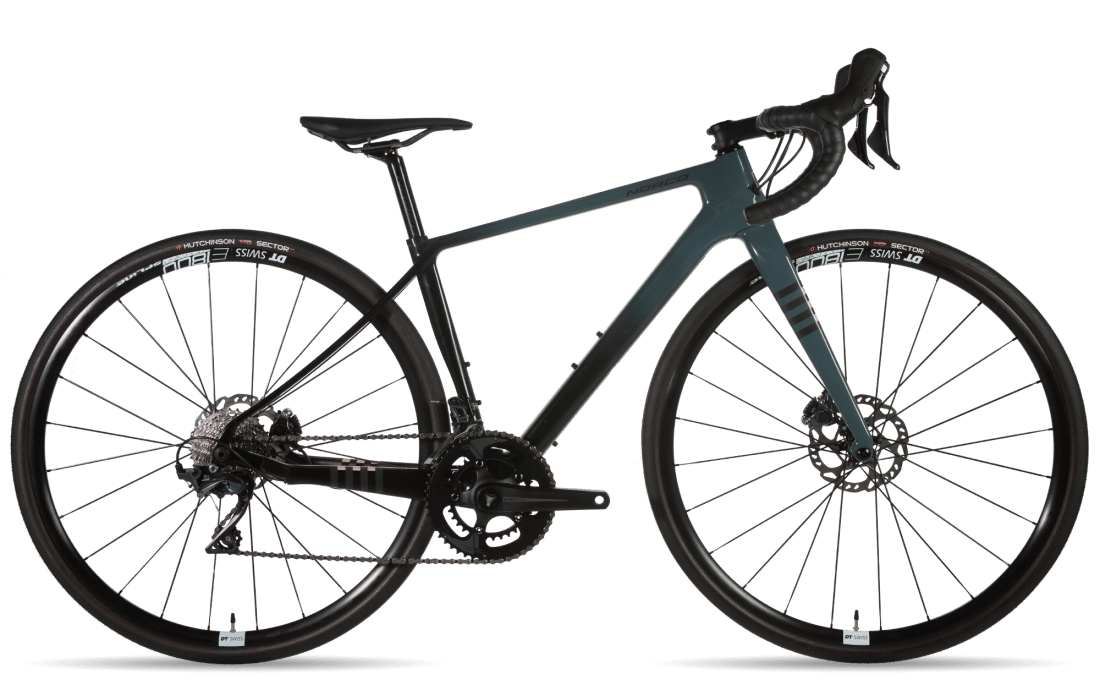

2019 Norco Section Carbon Womens geometry
Full frame geometry for the 2019 Norco Section Carbon Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 526 | 369 | 74.5 | 71.2 | 108 | 515 | 425 | 731 | 75 | 581 | 415 | 984 |
| 50.5 | 537 | 376 | 74 | 71.8 | 120 | 530 | 450 | 747 | 72 | 587 | 415 | 992 |
| 53 | 556 | 386 | 73.8 | 72.2 | 138 | 548 | 480 | 767 | 72 | 598 | 415 | 1002 |
| 55.5 | 574 | 392 | 73.2 | 72.5 | 155 | 565 | 510 | 789 | 72 | 605 | 415 | 1009 |
All measurements in millimetres unless marked (°) for angles.
