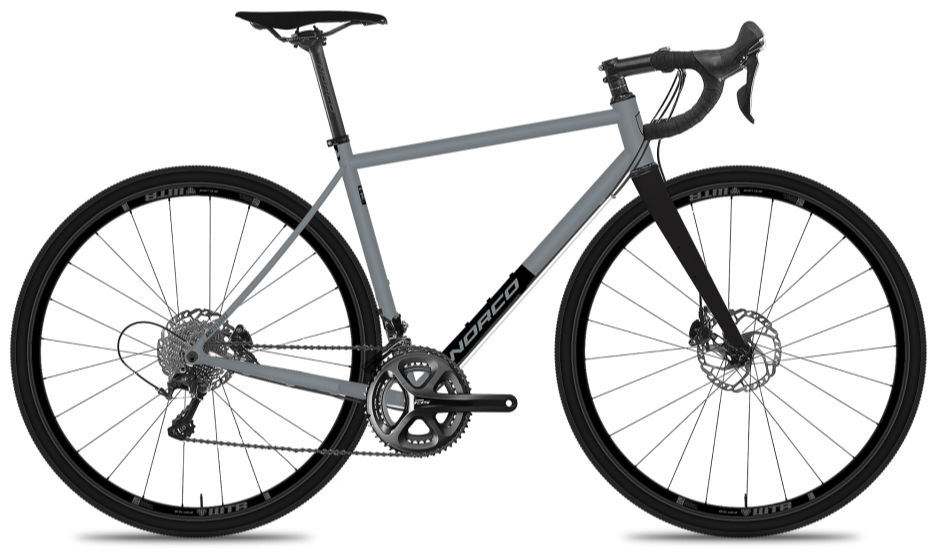

2018 Norco Search XR Steel geometry
Full frame geometry for the 2018 Norco Search XR Steel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45.5 | 507 | 355 | 74 | 70.8 | 100 | 500 | 410 | 701 | 57 | 567 | 420 | 980 |
| 48 | 526 | 362 | 73.8 | 71 | 120 | 515 | 435 | 720 | 57 | 578 | 420 | 991 |
| 50.5 | 549 | 375 | 74.2 | 71 | 110 | 530 | 460 | 746 | 75 | 595 | 430 | 1014 |
| 53 | 563 | 383 | 73.8 | 71.5 | 125 | 548 | 490 | 767 | 73 | 604 | 430 | 1023 |
| 55.5 | 583 | 390 | 73.2 | 71.8 | 145 | 565 | 520 | 789 | 73 | 614 | 430 | 1033 |
| 58 | 600 | 399 | 73 | 72 | 165 | 583 | 550 | 813 | 70 | 627 | 432 | 1050 |
| 60.5 | 620 | 407 | 72.8 | 72.2 | 185 | 600 | 580 | 836 | 70 | 639 | 432 | 1062 |
All measurements in millimetres unless marked (°) for angles.
