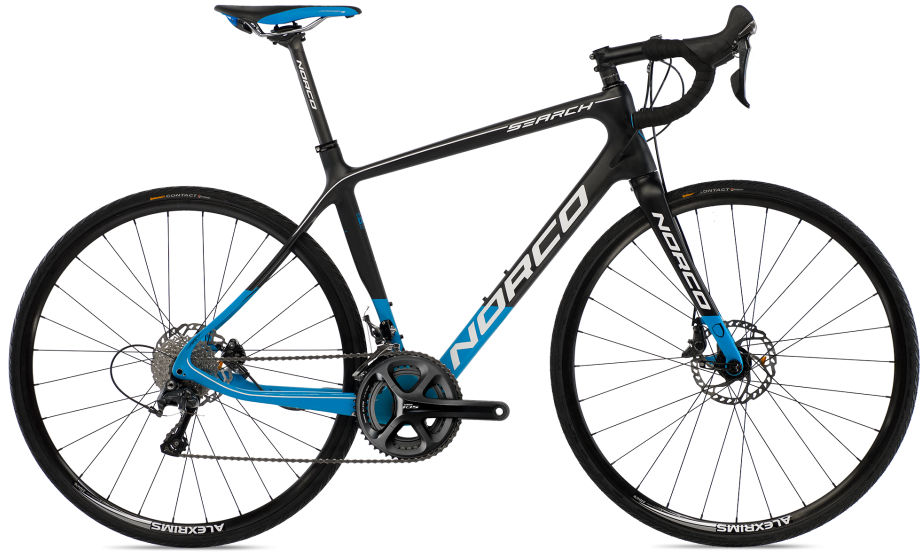

2015 Norco Search Carbon MKI geometry
Full frame geometry for the 2015 Norco Search Carbon MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 530 | 363 | 74.8 | 70.8 | 115 | 513 | 425 | 713 | 73 | 577 | 425 | 991 |
| 50.5 | 546 | 368 | 74.3 | 71.3 | 130 | 525 | 450 | 730 | 73 | 583 | 425 | 997 |
| 53 | 562 | 376 | 73.5 | 72 | 148 | 543 | 480 | 756 | 70 | 592 | 425 | 1007 |
| 55.5 | 585 | 384 | 73.3 | 72.3 | 170 | 560 | 510 | 778 | 70 | 604 | 425 | 1019 |
| 58 | 604 | 393 | 73 | 72.5 | 193 | 578 | 540 | 801 | 68 | 617 | 425 | 1033 |
| 60.5 | 627 | 400 | 72.8 | 72.8 | 215 | 595 | 570 | 826 | 68 | 629 | 425 | 1045 |
All measurements in millimetres unless marked (°) for angles.
