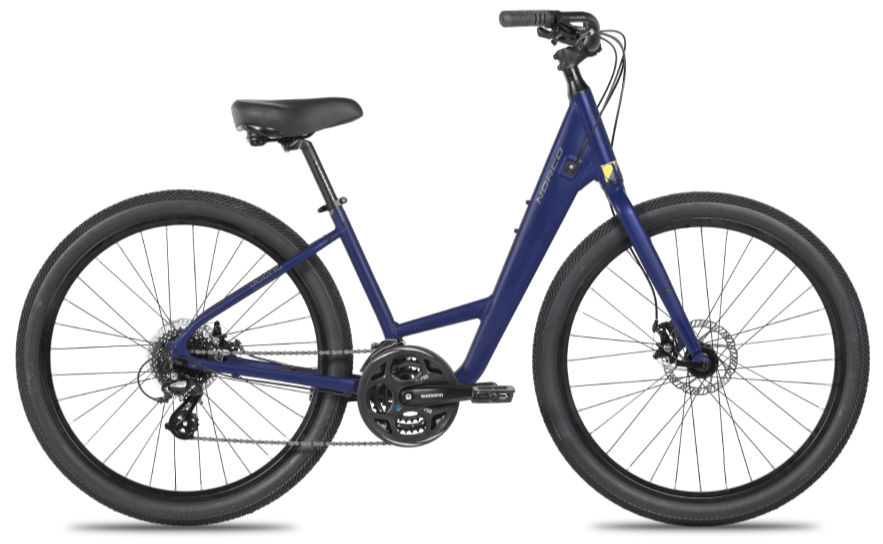

2017 Norco Scene geometry
Full frame geometry for the 2017 Norco Scene, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 599 | 341 | 67 | 69 | 170 | 595 | 375 | 700 | 68 | 602 | 470 | 1063 |
| M | 617 | 348 | 67 | 69 | 190 | 610 | 425 | 730 | 68 | 616 | 470 | 1078 |
| L | 636 | 355 | 67 | 69 | 210 | 625 | 475 | 760 | 68 | 630 | 475 | 1097 |
| XL | 655 | 362 | 67 | 69 | 230 | 640 | 525 | 790 | 68 | 645 | 475 | 1111 |
All measurements in millimetres unless marked (°) for angles.
