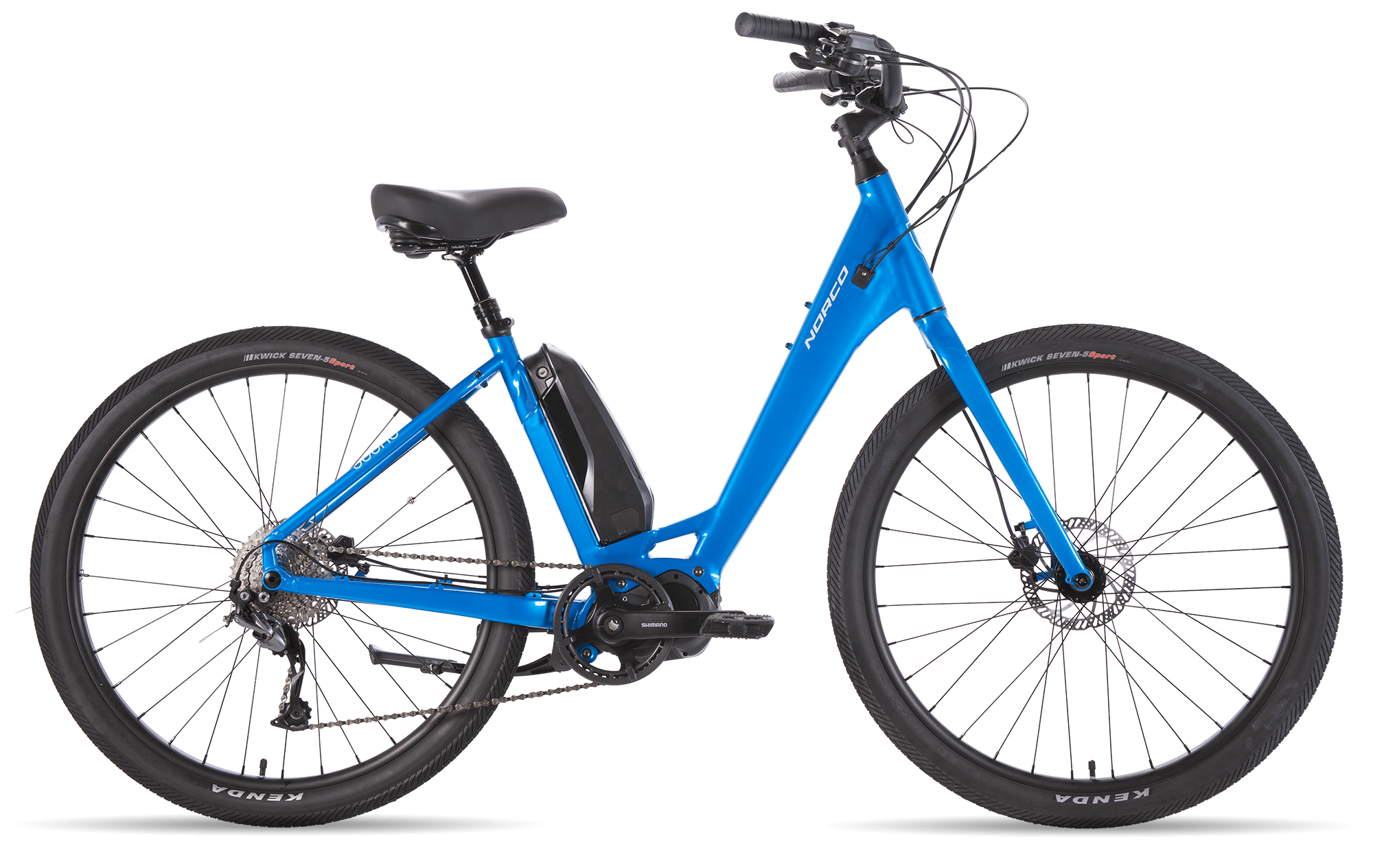

2019 Norco Scene VLT geometry
Full frame geometry for the 2019 Norco Scene VLT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 593 | 355 | 68 | 68 | 170 | 595 | 425 | 415 | 67 | 470 | 1087 | 50 | 88 |
| M | 621 | 365 | 68 | 68 | 200 | 616 | 450 | 415 | 67 | 470 | 1108 | 50 | 88 |
| L | 649 | 375 | 68 | 68 | 230 | 637 | 475 | 415 | 67 | 470 | 1129 | 50 | 88 |
All measurements in millimetres unless marked (°) for angles.
