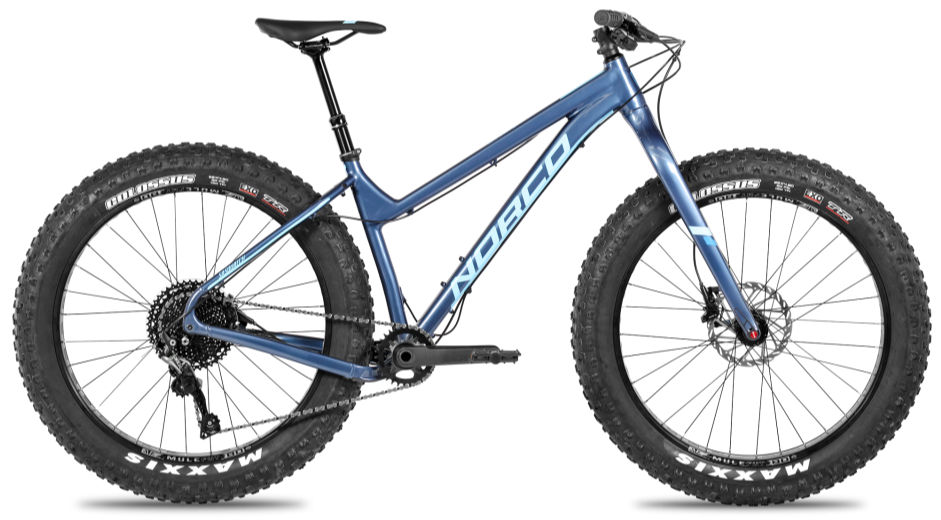

2017 Norco Sasquatch MKII geometry
Full frame geometry for the 2017 Norco Sasquatch MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 602 | 405 | 73 | 68 | 100 | 590 | 380 | 738 | 54 | 685 | 440 | 1119 |
| M | 611 | 428 | 73 | 68 | 110 | 615 | 430 | 738 | 54 | 710 | 440 | 1145 |
| L | 621 | 450 | 73 | 68 | 120 | 640 | 480 | 742 | 54 | 736 | 440 | 1170 |
| XL | 630 | 472 | 73 | 68 | 130 | 665 | 530 | 759 | 54 | 762 | 440 | 1197 |
All measurements in millimetres unless marked (°) for angles.
