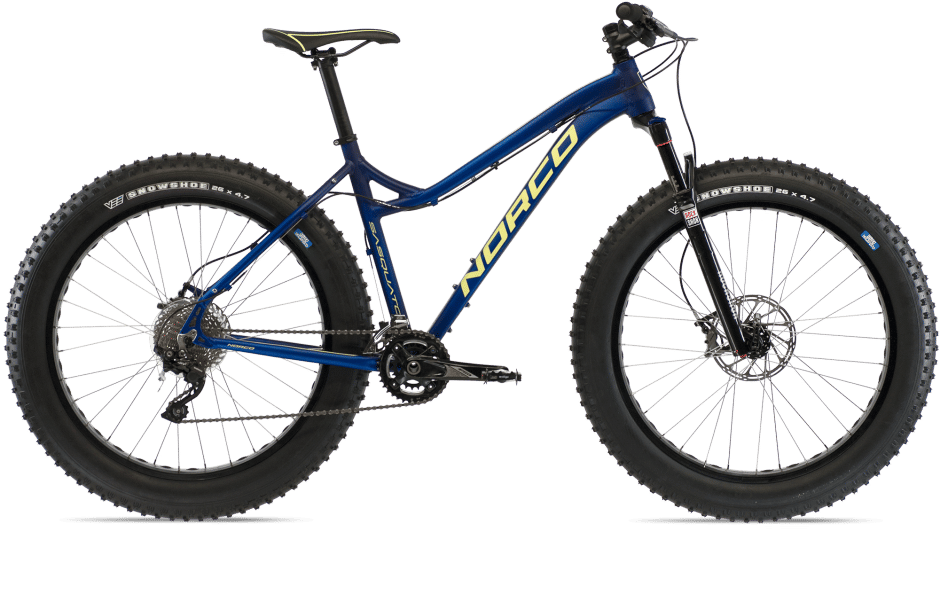

2015 Norco Sasquatch MKI geometry
Full frame geometry for the 2015 Norco Sasquatch MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 609 | 384 | 73 | 69 | 100 | 570 | 381 | 720 | 54 | 653 | 450 | 1098 |
| M | 613 | 402 | 73 | 69 | 105 | 590 | 432 | 722 | 54 | 674 | 450 | 1118 |
| L | 618 | 421 | 73 | 69 | 110 | 610 | 483 | 726 | 54 | 694 | 450 | 1139 |
| XL | 623 | 440 | 73 | 69 | 115 | 630 | 533 | 746 | 54 | 714 | 450 | 1159 |
All measurements in millimetres unless marked (°) for angles.
