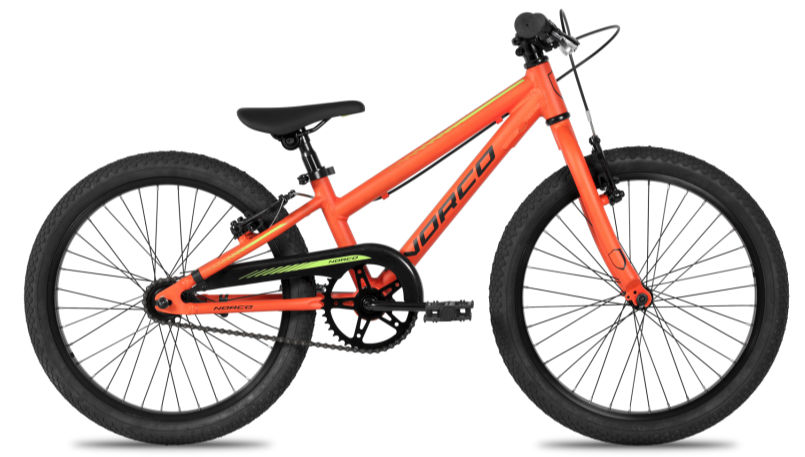

2017 Norco Samurai 20 geometry
Full frame geometry for the 2017 Norco Samurai 20, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 396 | 287 | 67 | 70 | 90 | 455 | 240 | 5 | 453 | 348 | 800 |
All measurements in millimetres unless marked (°) for angles.
