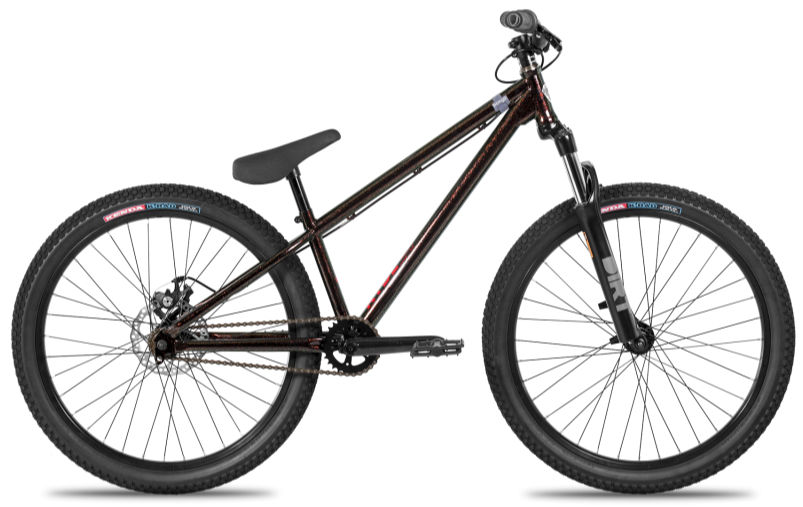

2017 Norco Ryde 24 geometry
Full frame geometry for the 2017 Norco Ryde 24, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 535 | 356 | 71 | 71 | 110 | 540 | 280 | 696 | 10 | 584 | 367 | 951 |
All measurements in millimetres unless marked (°) for angles.
