2017 Norco · MD

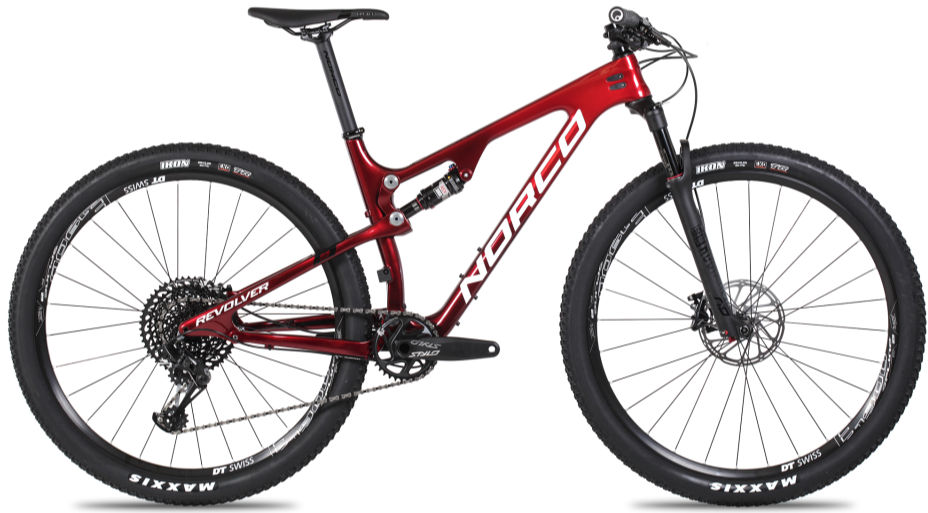

2017 Norco Revolver FS geometry
Full frame geometry for the 2017 Norco Revolver FS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 558 | 387 | 75 | 70 | 100 | 537 | 739 | 20 | 628 | 422 | 1049 |
| S | 582 | 415 | 74.8 | 70.3 | 90 | 574 | 775 | 38 | 666 | 437 | 1100 |
| M | 583 | 439 | 74.5 | 70.5 | 90 | 601 | 765 | 38 | 687 | 439 | 1124 |
| L | 594 | 461 | 74.3 | 70.8 | 100 | 628 | 760 | 38 | 710 | 442 | 1149 |
| XL | 604 | 482 | 74 | 71 | 110 | 655 | 752 | 38 | 732 | 444 | 1174 |
All measurements in millimetres unless marked (°) for angles.
