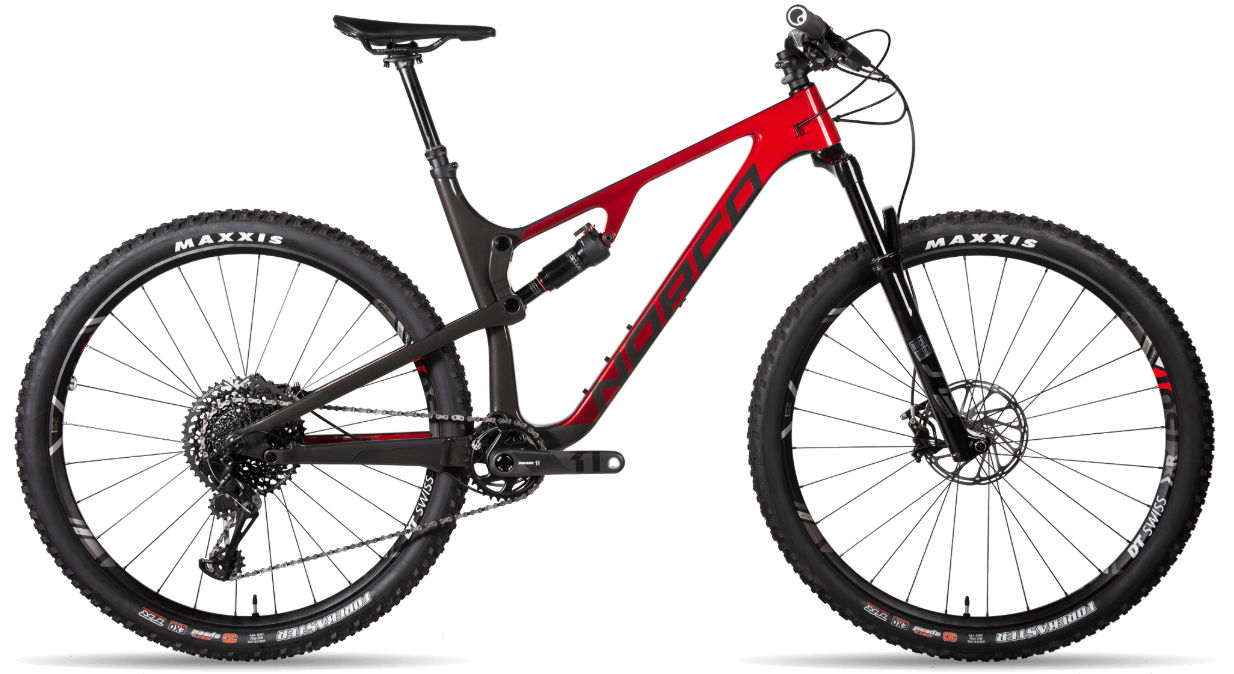

2019 Norco Revolver FS 120 geometry
Full frame geometry for the 2019 Norco Revolver FS 120, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 587 | 418 | 74.9 | 67.4 | 90 | 577 | 425 | 709 | 32 | 699 | 420 | 1117 | 51 | 100 |
| M | 588 | 448 | 74.9 | 67.4 | 90 | 607 | 440 | 716 | 32 | 729 | 423 | 1150 | 51 | 100 |
| L | 597 | 478 | 74.9 | 67.4 | 100 | 640 | 485 | 717 | 32 | 763 | 427 | 1188 | 51 | 100 |
| XL | 607 | 509 | 74.9 | 67.4 | 110 | 672 | 510 | 726 | 32 | 797 | 430 | 1225 | 51 | 100 |
All measurements in millimetres unless marked (°) for angles.
