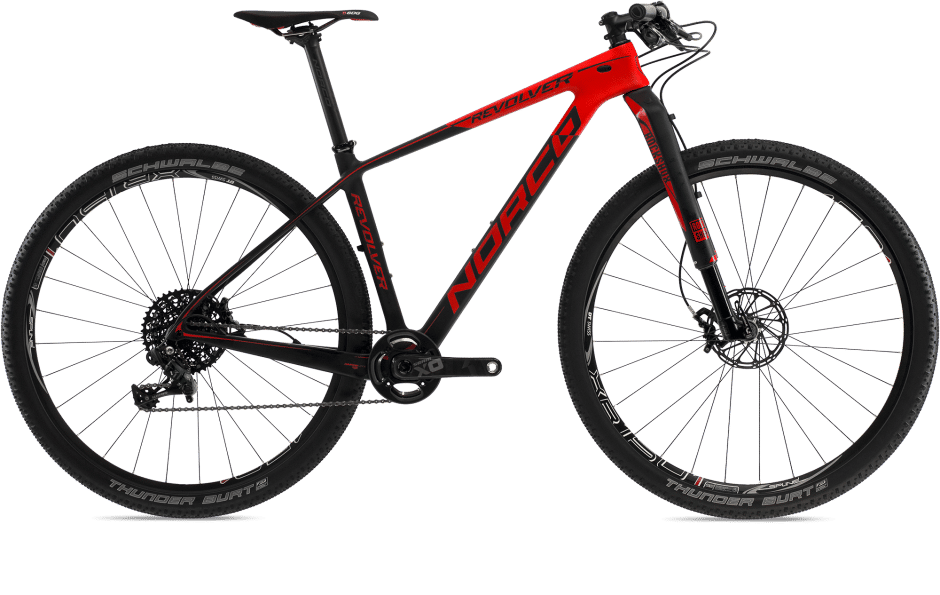

2015 Norco Revolver 9 SL geometry
Full frame geometry for the 2015 Norco Revolver 9 SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 611 | 390 | 73.8 | 70.3 | 90 | 568 | 405 | 745 | 65 | 638 | 435 | 1065 |
| M | 612 | 414 | 73.5 | 70.5 | 90 | 595 | 445 | 785 | 65 | 659 | 438 | 1089 |
| L | 627 | 433 | 73.3 | 70.8 | 105 | 622 | 483 | 812 | 65 | 681 | 440 | 1114 |
| XL | 643 | 454 | 73 | 71 | 120 | 650 | 533 | 841 | 65 | 704 | 443 | 1139 |
All measurements in millimetres unless marked (°) for angles.
