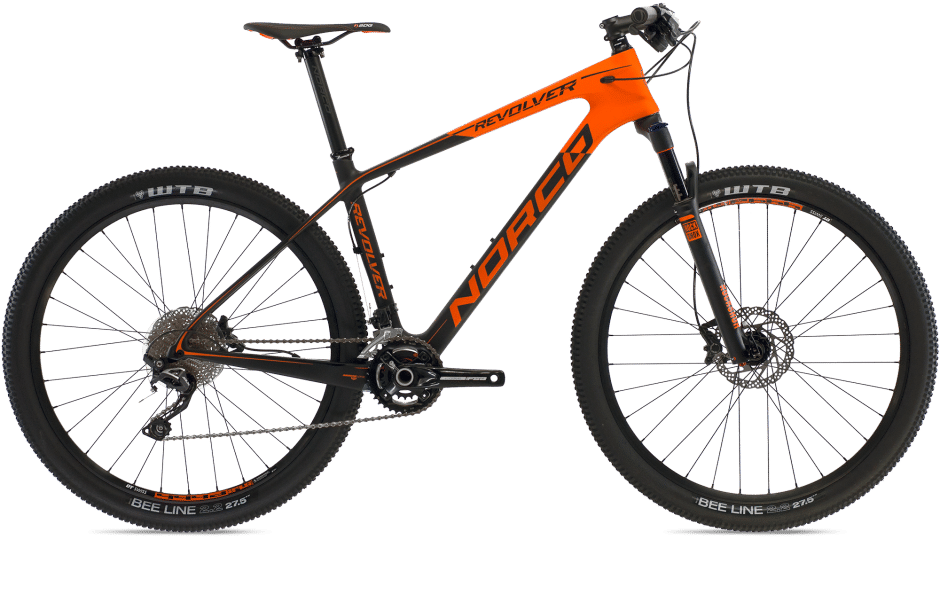

2015 Norco Revolver 7 geometry
Full frame geometry for the 2015 Norco Revolver 7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 598 | 394 | 73.8 | 69.8 | 115 | 568 | 405 | 745 | 47 | 644 | 425 | 1064 |
| M | 613 | 413 | 73.5 | 70 | 130 | 595 | 445 | 790 | 47 | 666 | 427 | 1089 |
| L | 628 | 433 | 73.3 | 70.3 | 145 | 622 | 485 | 817 | 47 | 688 | 430 | 1113 |
| XL | 644 | 452 | 73 | 70.5 | 160 | 649 | 533 | 845 | 47 | 710 | 432 | 1138 |
All measurements in millimetres unless marked (°) for angles.
