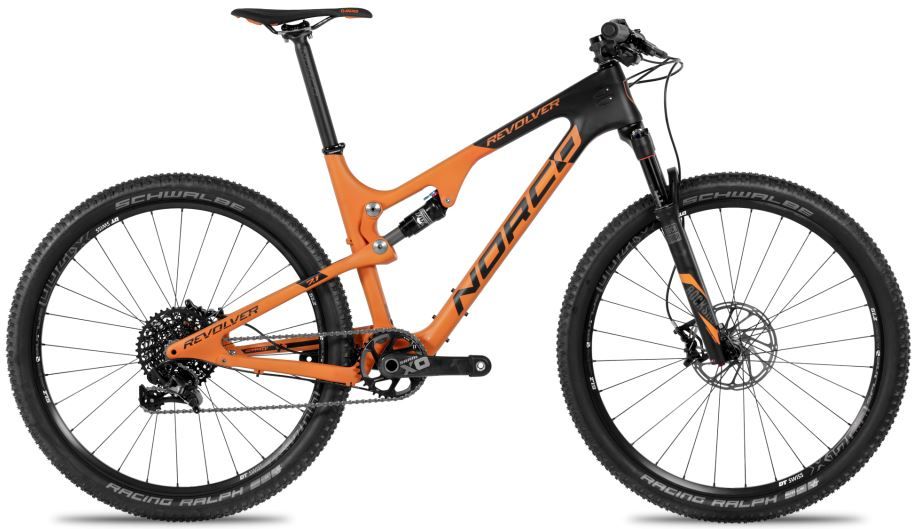

2016 Norco Revolver 7 FS geometry
Full frame geometry for the 2016 Norco Revolver 7 FS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 558 | 387 | 75 | 70 | 100 | 537 | 739 | 20 | 628 | 422 | 1049 |
| S | 568 | 409 | 74.8 | 70.3 | 110 | 564 | 751 | 20 | 651 | 425 | 1074 |
| M | 579 | 430 | 74.5 | 70.5 | 120 | 591 | 745 | 20 | 673 | 427 | 1100 |
| L | 589 | 452 | 74.3 | 70.8 | 130 | 618 | 739 | 20 | 696 | 431 | 1126 |
| XL | 600 | 474 | 74 | 71 | 140 | 645 | 730 | 20 | 718 | 435 | 1152 |
All measurements in millimetres unless marked (°) for angles.
