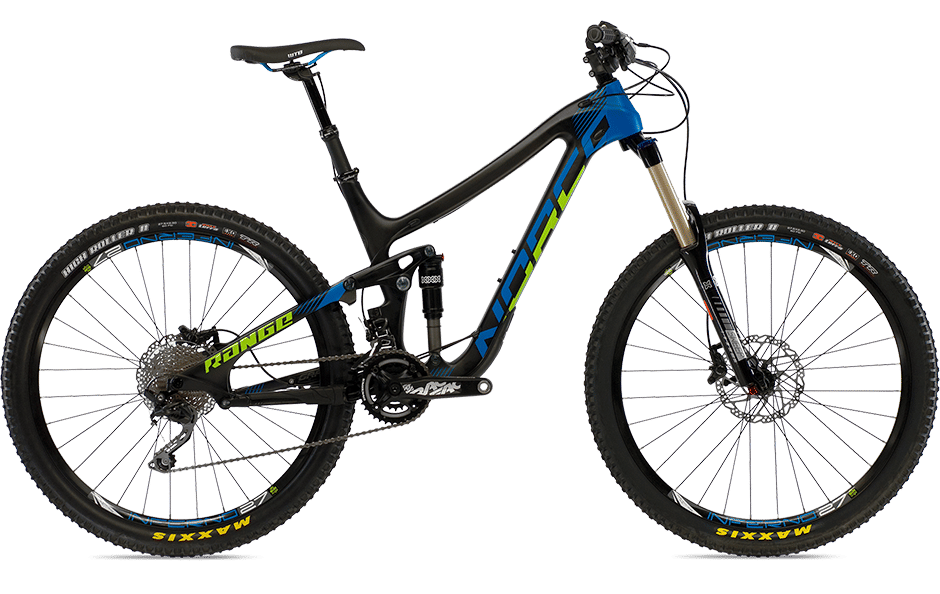

2015 Norco Range C7 geometry
Full frame geometry for the 2015 Norco Range C7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 593 | 397 | 73.6 | 66 | 110 | 572 | 405 | 760 | 10 | 705 | 422 | 1126 |
| M | 602 | 415 | 73.2 | 66 | 110 | 598 | 435 | 759 | 10 | 728 | 426 | 1153 |
| L | 611 | 435 | 72.8 | 66 | 120 | 625 | 470 | 761 | 10 | 752 | 430 | 1182 |
| XL | 620 | 456 | 72.5 | 66 | 130 | 652 | 510 | 755 | 10 | 776 | 434 | 1210 |
All measurements in millimetres unless marked (°) for angles.
