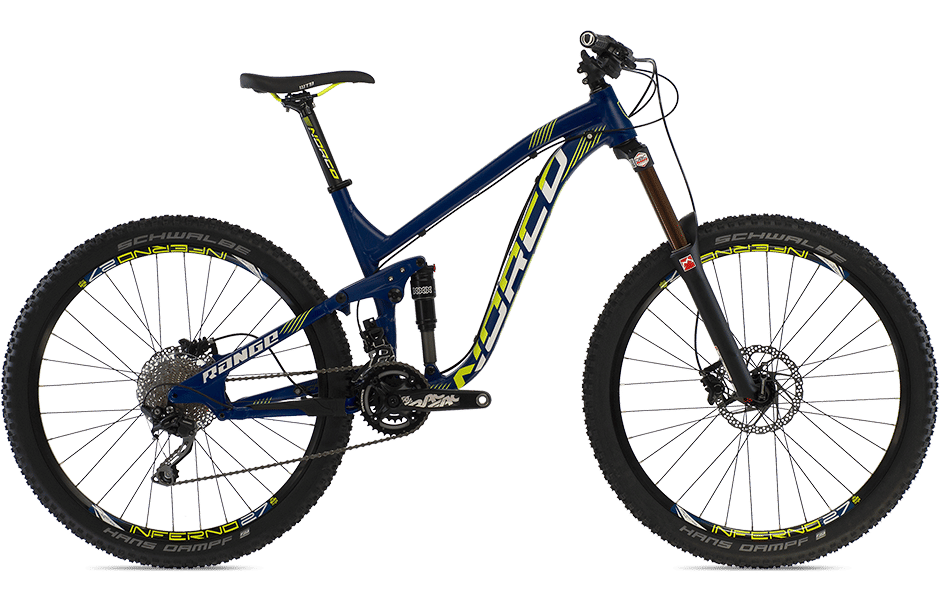

2015 Norco Range A7 geometry
Full frame geometry for the 2015 Norco Range A7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 582 | 377 | 73.9 | 66 | 90 | 545 | 380 | 760 | 10 | 680 | 419 | 1093 |
| S | 591 | 398 | 73.6 | 66 | 100 | 572 | 405 | 750 | 10 | 705 | 423 | 1122 |
| M | 600 | 417 | 73.2 | 66 | 110 | 598 | 435 | 751 | 10 | 727 | 427 | 1149 |
| L | 609 | 436 | 72.8 | 66 | 120 | 625 | 470 | 749 | 10 | 751 | 432 | 1177 |
| XL | 618 | 457 | 72.5 | 66 | 130 | 652 | 510 | 748 | 10 | 776 | 436 | 1206 |
All measurements in millimetres unless marked (°) for angles.
