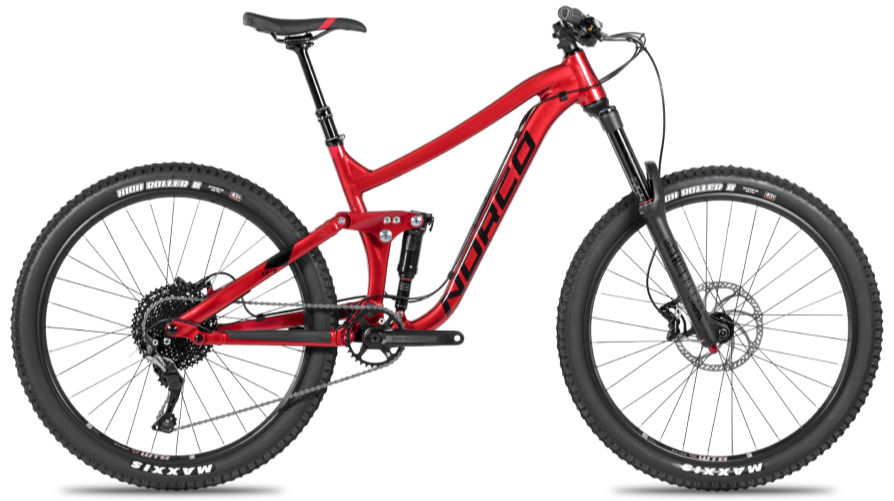

2017 Norco Range A7 MKII (29) geometry
Full frame geometry for the 2017 Norco Range A7 MKII (29), size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 623 | 459 | 74.1 | 65.5 | 100 | 637 | 470 | 797 | 33 | 785 | 435 | 1218 |
| M | 623 | 434 | 74.5 | 65.5 | 100 | 607 | 435 | 802 | 33 | 760 | 430 | 1188 |
| XL | 627 | 483 | 73.7 | 65.5 | 104 | 667 | 510 | 789 | 33 | 810 | 440 | 1249 |
All measurements in millimetres unless marked (°) for angles.
