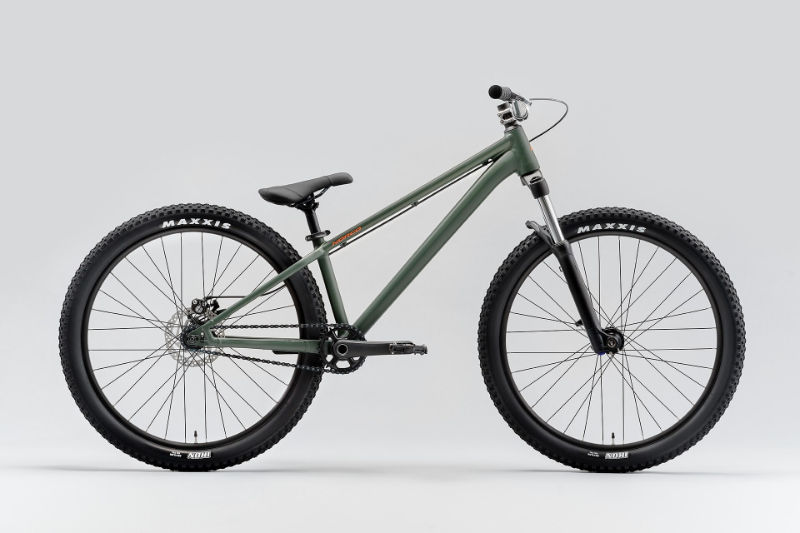

2025 Norco Rampage geometry
Full frame geometry for the 2025 Norco Rampage, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 554 | 405 | 75 | 68.5 | 105 | 554 | 300 | 599 | 20 | 379 | 1037 | 40 | 94 |
| M | 564 | 435 | 75 | 68.5 | 115 | 586 | 300 | 599 | 20 | 379 | 1071 | 40 | 94 |
| L | 573 | 465 | 75 | 68.5 | 125 | 619 | 300 | 599 | 20 | 379 | 1104 | 40 | 94 |
All measurements in millimetres unless marked (°) for angles.
