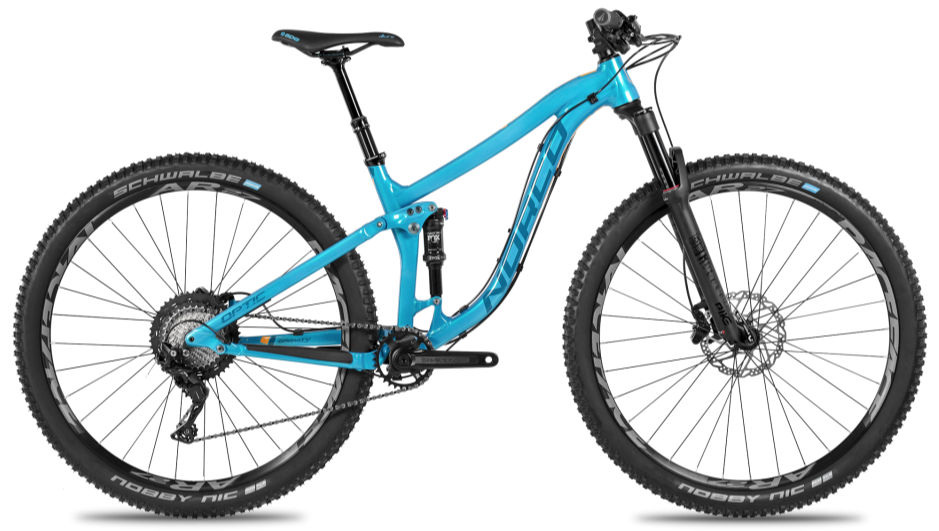

2017 Norco Optic Alu Womens (29) geometry
Full frame geometry for the 2017 Norco Optic Alu Womens (29), size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 598 | 441 | 74.9 | 68.5 | 90 | 602 | 445 | 753 | 39 | 717 | 430 | 1144 |
| S | 601 | 414 | 75.4 | 68.5 | 93 | 571 | 410 | 761 | 39 | 692 | 425 | 1114 |
All measurements in millimetres unless marked (°) for angles.
