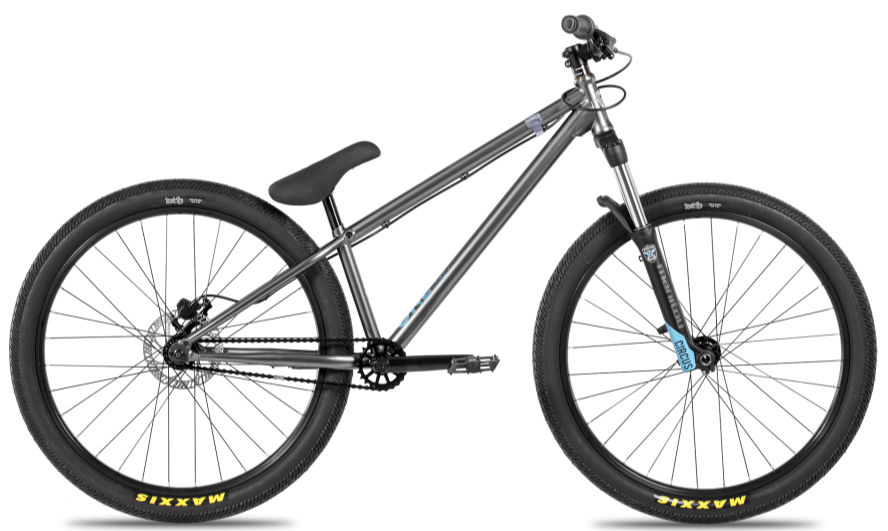

2017 Norco One25 geometry
Full frame geometry for the 2017 Norco One25, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Long | 558 | 399 | 72 | 69.5 | 110 | 580 | 286 | 732 | 20 | 648 | 387 | 1034 |
| Short | 558 | 384 | 72 | 69.5 | 110 | 565 | 286 | 739 | 20 | 633 | 387 | 1019 |
All measurements in millimetres unless marked (°) for angles.
