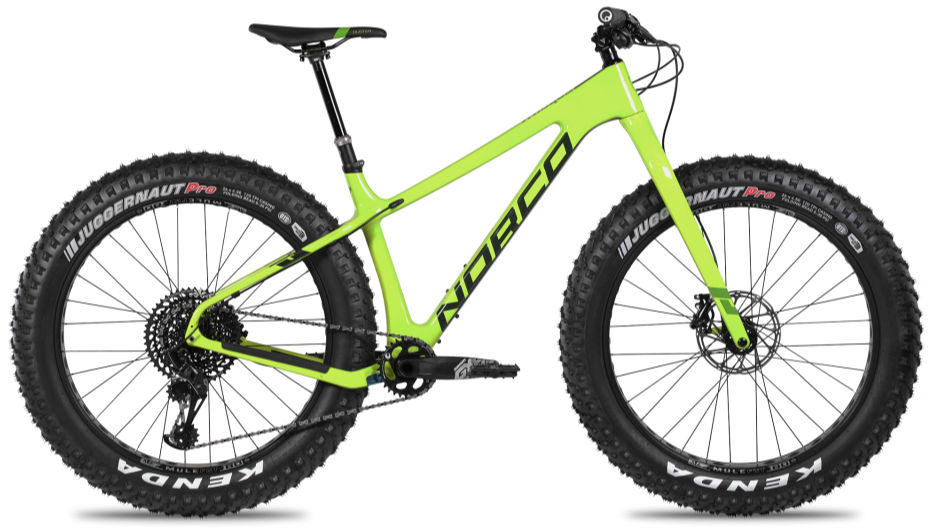

2017 Norco Ithaqua geometry
Full frame geometry for the 2017 Norco Ithaqua, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 613 | 406 | 73.3 | 69 | 100 | 590 | 380 | 727 | 60 | 676 | 440 | 1109 |
| M | 622 | 424 | 72.9 | 69 | 110 | 615 | 430 | 736 | 60 | 697 | 443 | 1132 |
| L | 632 | 441 | 72.5 | 69 | 120 | 640 | 480 | 745 | 60 | 717 | 445 | 1156 |
| XL | 641 | 458 | 72.1 | 69 | 130 | 665 | 530 | 750 | 60 | 738 | 448 | 1179 |
All measurements in millimetres unless marked (°) for angles.
